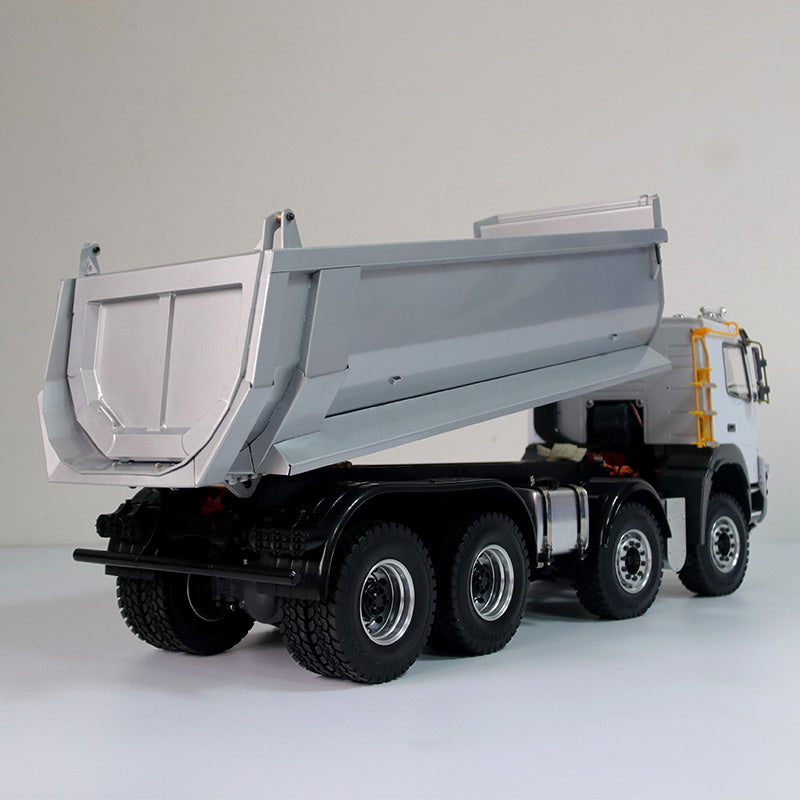

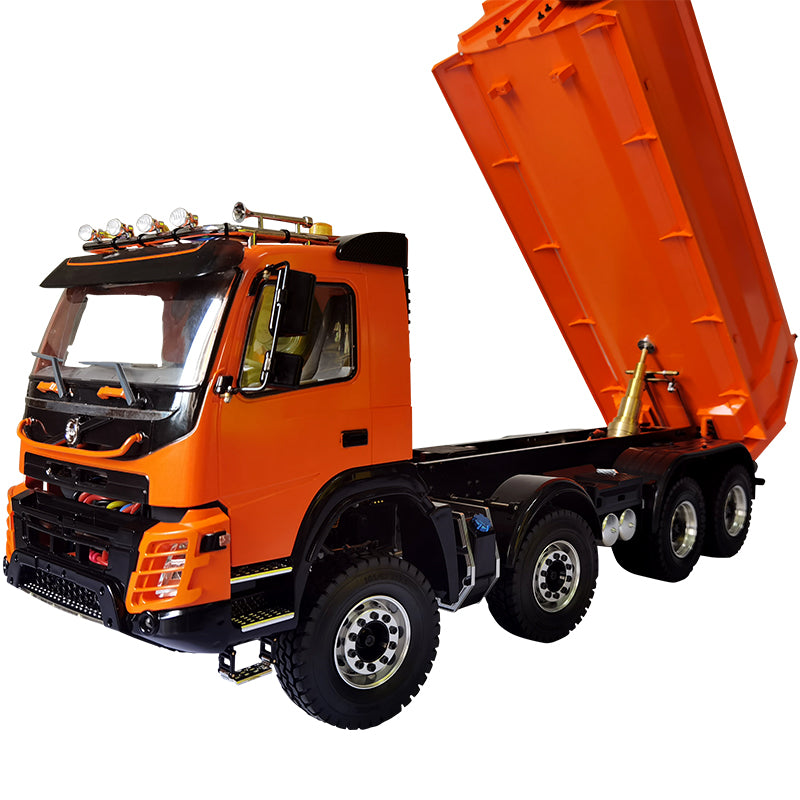

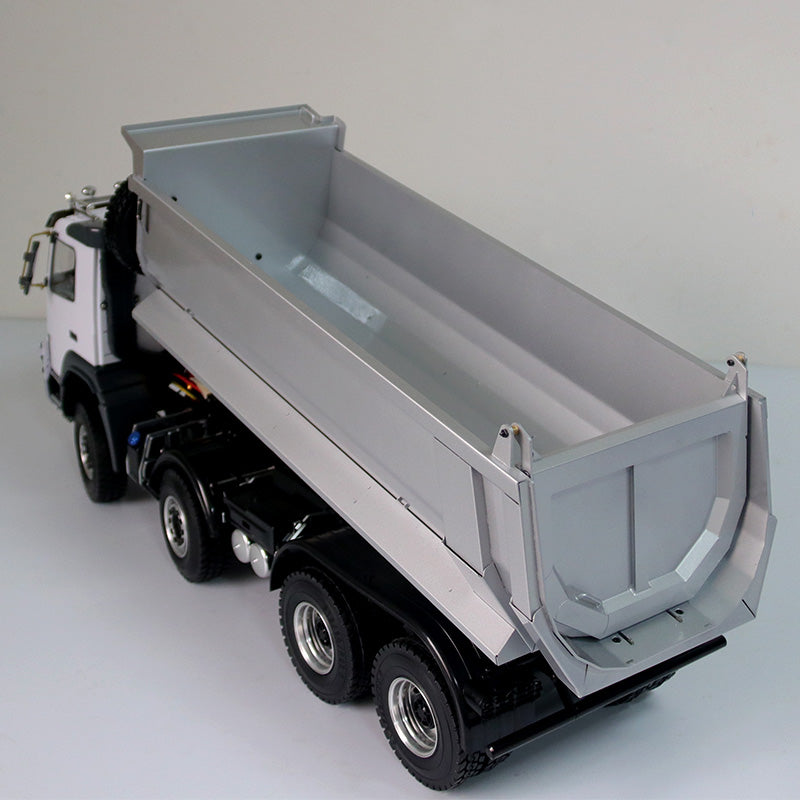

JDMODEL static point 1/14 tractor remote control hydraulic dump truck model 8X8 mud engineering vehicle

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model:JDM-65D/JDM-65-0-C

1:14 tractor remote control hydraulic dump truck model 8X8 mud truck JDM-65

If you have any questions, please contact us first! The model is fast, please pay attention to safety and operate correctly according to the instructions and operation video!

The above paint colors are customized versions. Please contact us for consultation if you need them.

Scale: 1:14

Dimensions: length 680, width 210, height 160, unit MM

Weight: 10.3KG, plus remote control 10.8KG
The weight of the whole vehicle plus packaging is 15 kilograms, packaging size 890*320*350MM

Theoretical load: 15KG
Total load mass: 24.5KG

Remote control: FS-i6S (6 channels)
Batteries and light sets need to be purchased separately, 3S lithium batteries within the size of 150MM length, 45MM width and 40MM height, the voltage cannot be lower than 11.1V
Hydraulic oil needs to be No. 32 or No. 46

Gearbox: The latest planetary gearbox of the static point model is adopted, with simulated appearance. Compact structure, simulated zipper-type shifting. Large torque, can shift gears while moving. The reduction ratio is 1:64 for the first gear and 1:6 for the second gear.
Power: Strong magnetic high-torque brushed 35T540 motor, carbon brushes can be replaced. The actual vehicle load is 30 catties and the steep slope is 45 degrees.
Front suspension: tie rod swing arm balanced suspension, which increases the swing amplitude of the front axle and improves the truck's passing performance.
Rear suspension: Few-piece lightweight parabolic steel plate, with large load-to-weight ratio and good elasticity, so that each tire is evenly grounded.
Drive axle: Zinc alloy simulation single-stage reduction axle appearance design, which can remotely control the differential lock and improve the passability of the dump truck. The hexagonal joint adopts a static point model sleeve structure with higher installation accuracy.
Steering: Double-link steering system, the servo is installed between the beams, the position is simulated, the 17KG servo drives the steering torque, and the cooperation of each connecting rod can form different steering angles to reduce steering resistance.
Wheel: 10-hole heat dissipation vacuum tire rim structure, the surface is anodized bright silver.
Tire: Specification 315/80/R22.5, diameter 86.5MM, width 22MM, deep groove pattern, improve grip.

Drive shaft: Equipped with static point model initial V-type involute angle drive shaft, spline structure, large torque and appearance simulation, Pengbai power is transmitted by me.

Oil cylinder: 5-stage multi-stage oil cylinder, diameter 37MM, stroke 115MM, pressure resistance 5MP, connected with static point model oil pump set, theoretical thrust 400KG

Oil pump: 2814 brushless motor drive, rated pressure 3.5-5MPA, flow rate 0.42L/MIN. Small size and high efficiency, driven by 40A brushless electric regulator.

Car head buckle: buckle structure, easy and quick battery replacement. The structure is novel, when the lock is pulled open, the car shell will automatically pop up.
