LESU 1/14 Engineering Machinery Model 8-way Directional Valve RD-A0006 Wheeled Excavator Hydraulic Metal Model Toy

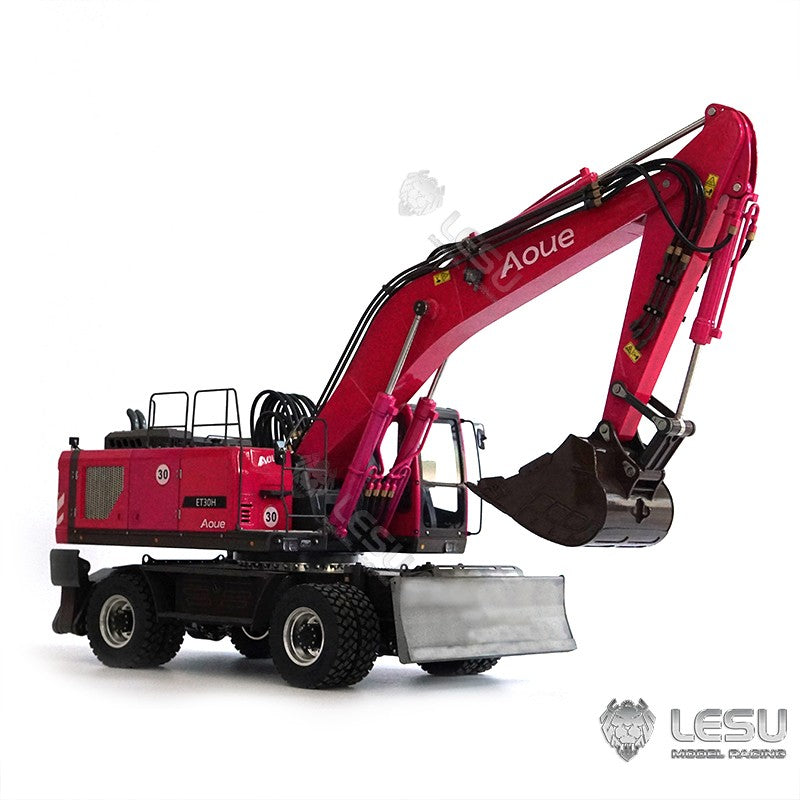

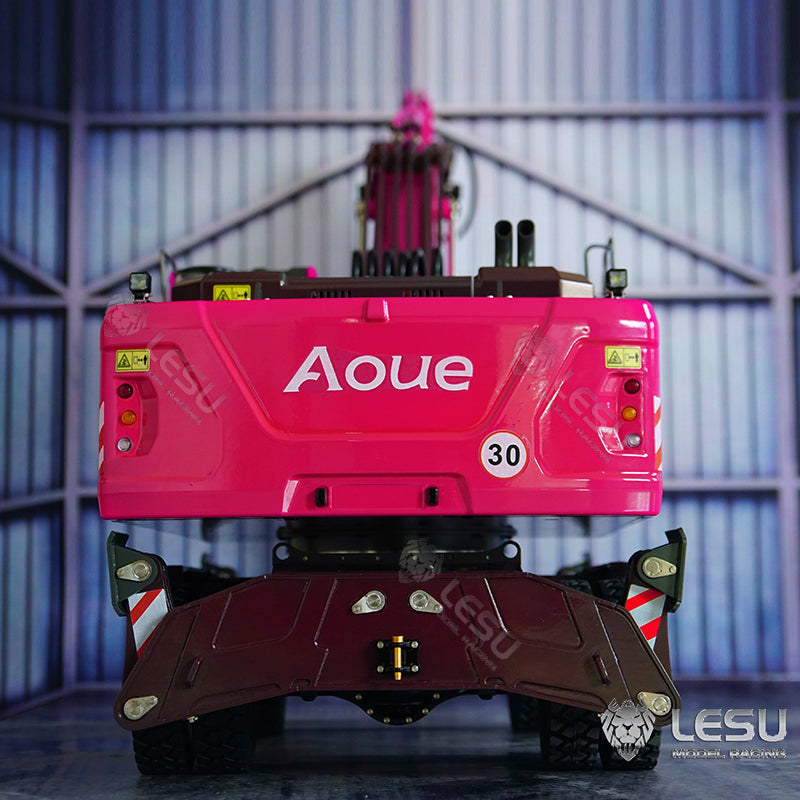

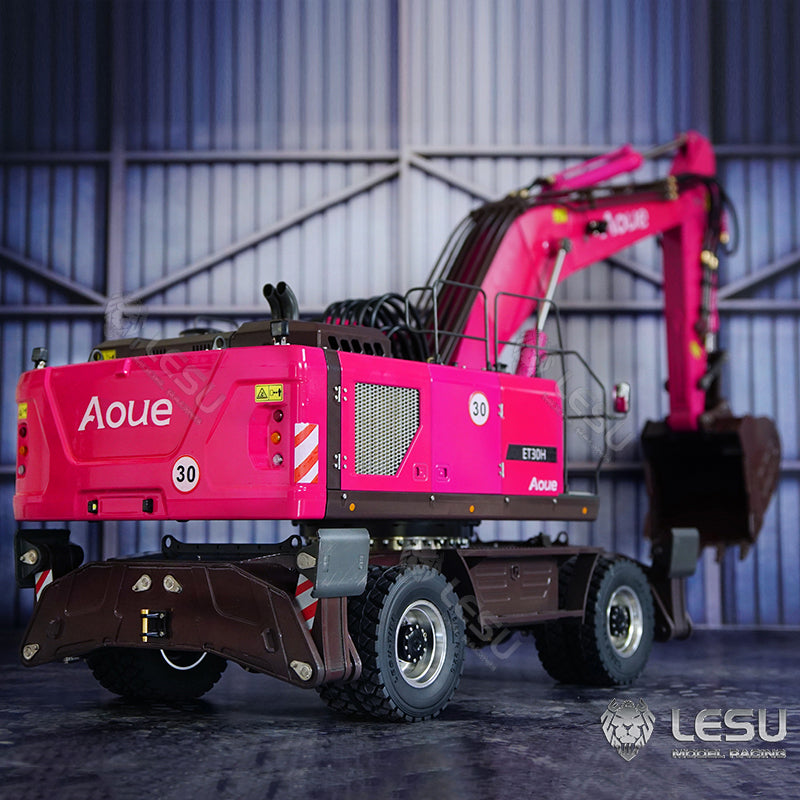

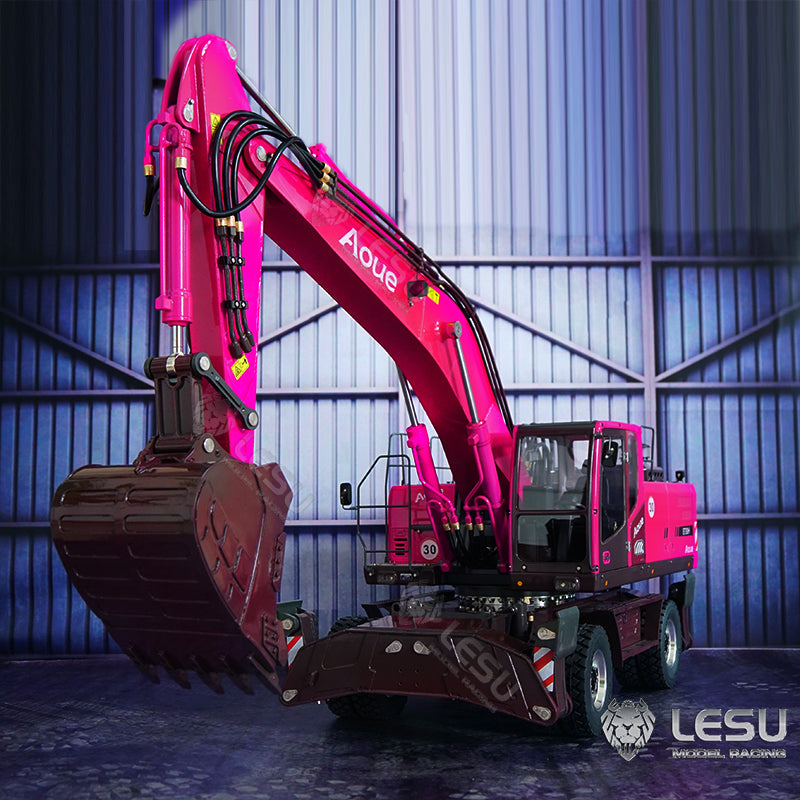

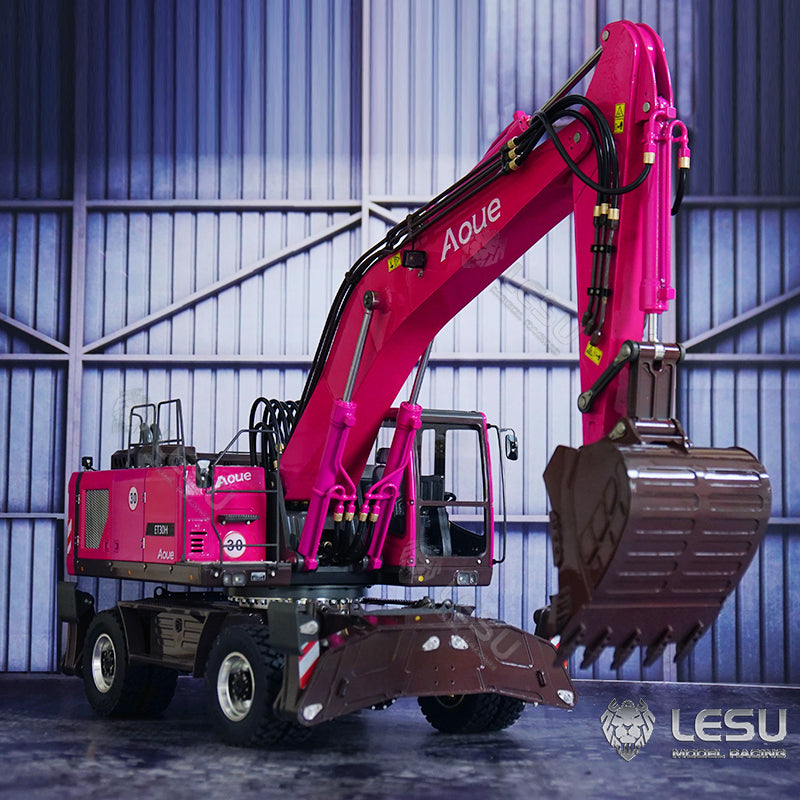

Lesu all-metal CNC manufacturing RD-A0006 wheeled traveling hydraulic excavator and RD-A0006 wheeled hydraulic excavator with front shovel

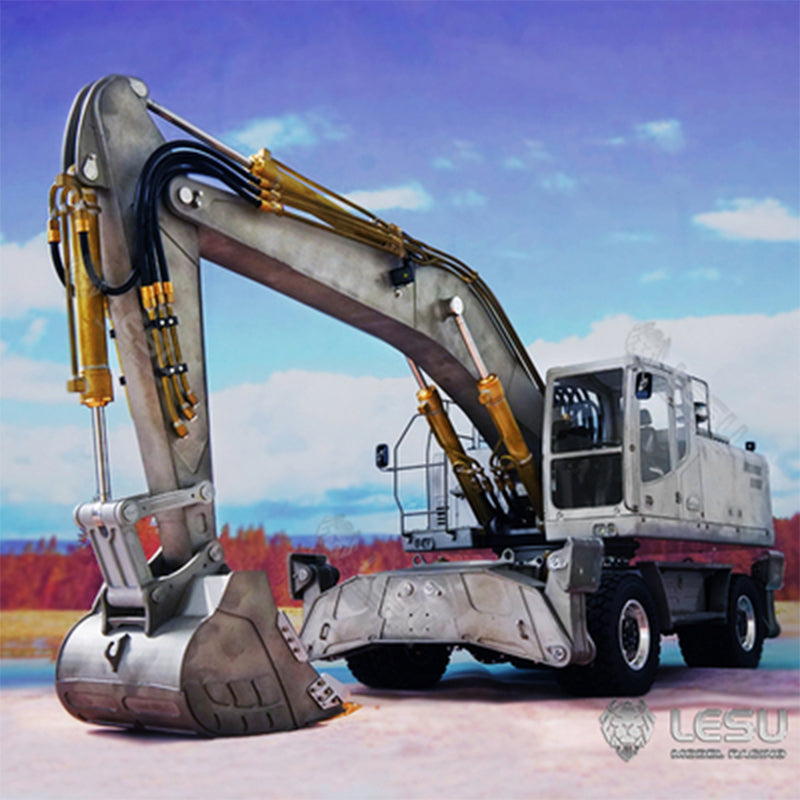

The excavator is the original color version of the kit, and players need to spray paint and assemble it by themselves. The whole car is equipped with electronics, including lights, but not batteries, remote controls and sound sets. There is also an RTR assembled and painted version, which is fully equipped with electronic equipment, including lights, but does not include batteries, remote controls and sound groups. The original car does not include quick demolition, the picture is only for shooting, the player needs quick demolition can be issued together with a single shot!

Power supply voltage: 7.4-11.1V 2S, 3S lithium battery, 3S recommended. Equipped with a spare battery compartment, safer and cleaner.

ESC:30A brushless ESC for travelling motor, 120A brushless ESC for oil pump motor, 320A brush ESC for rotary motor.

Hydraulic pump: LESU high pressure pump, rated pressure of 8 mpa, equipped with relief valve. The pressure can be adjusted according to the needs of the car. Flow rate: 400ml/min

Hydraulic components: six-way directional valve (standard version of the excavator only three channels, the remaining three channels to stay a digger quick release and other excavator accessories)

2-way reversing valve (front and rear hydraulic front shovel and rear lift support foot, one way in front and one way in the back)

Lock valve (control the front axle swing cylinder, switch to control the flow of hydraulic oil and close the flow)

Oil sliding ring (able to supply oil to the supporting foot without hindering the movement of the upper body part of the excavator)

Independent innovative hydraulic stations (pumps, motors, radiators, oil valves, filters, pressure gauges, tanks, overflows)

Precision cylinder: (CNC precision production, laser welding, practical and beautiful)

Suggested Note: Wheel digging requires more remote control channels, on the mechanical part of the reversing valve 6, rotary 1, oil pump 1, off the part of the walking 1, steering 1, locking differential 1, locking valve 1, front and rear feet 1, front shovel 1, lighting 1. Suggested to buy the remote control as much as possible when buying multi-channel or can extend the channel remote control manufacturers.
