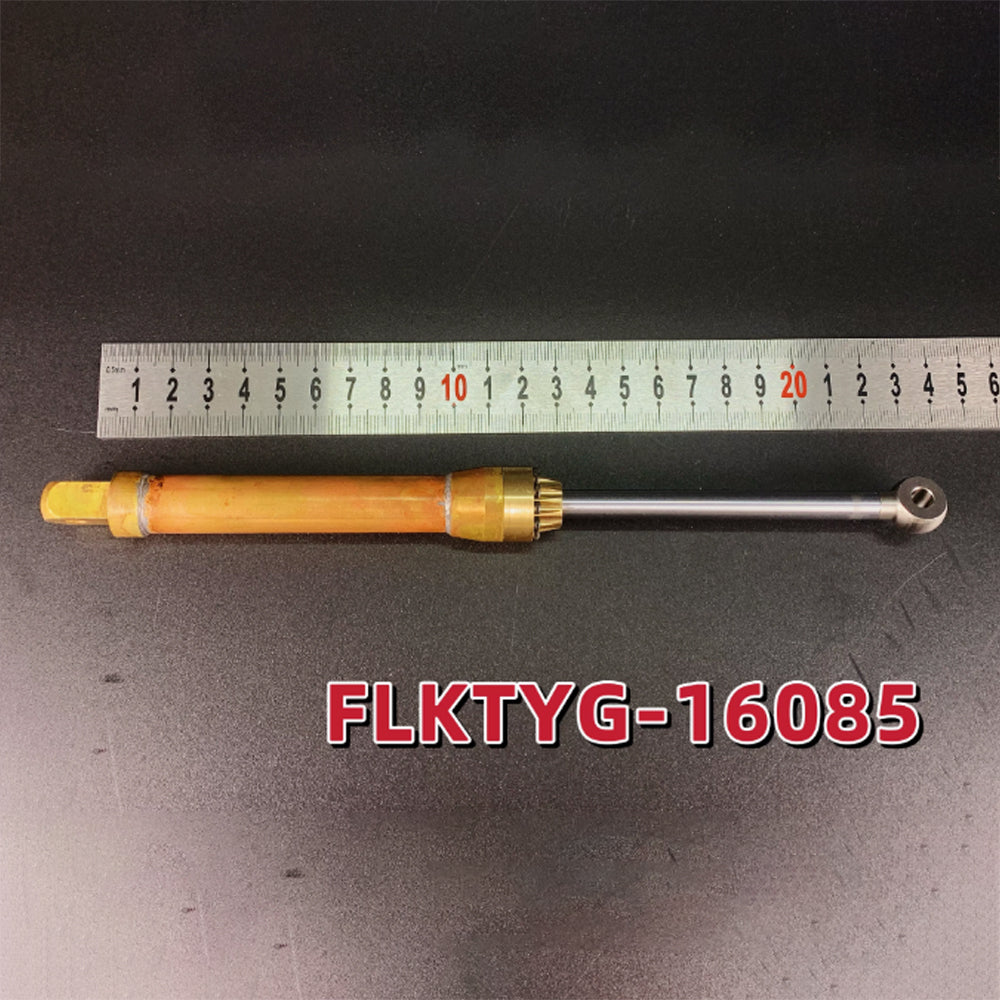

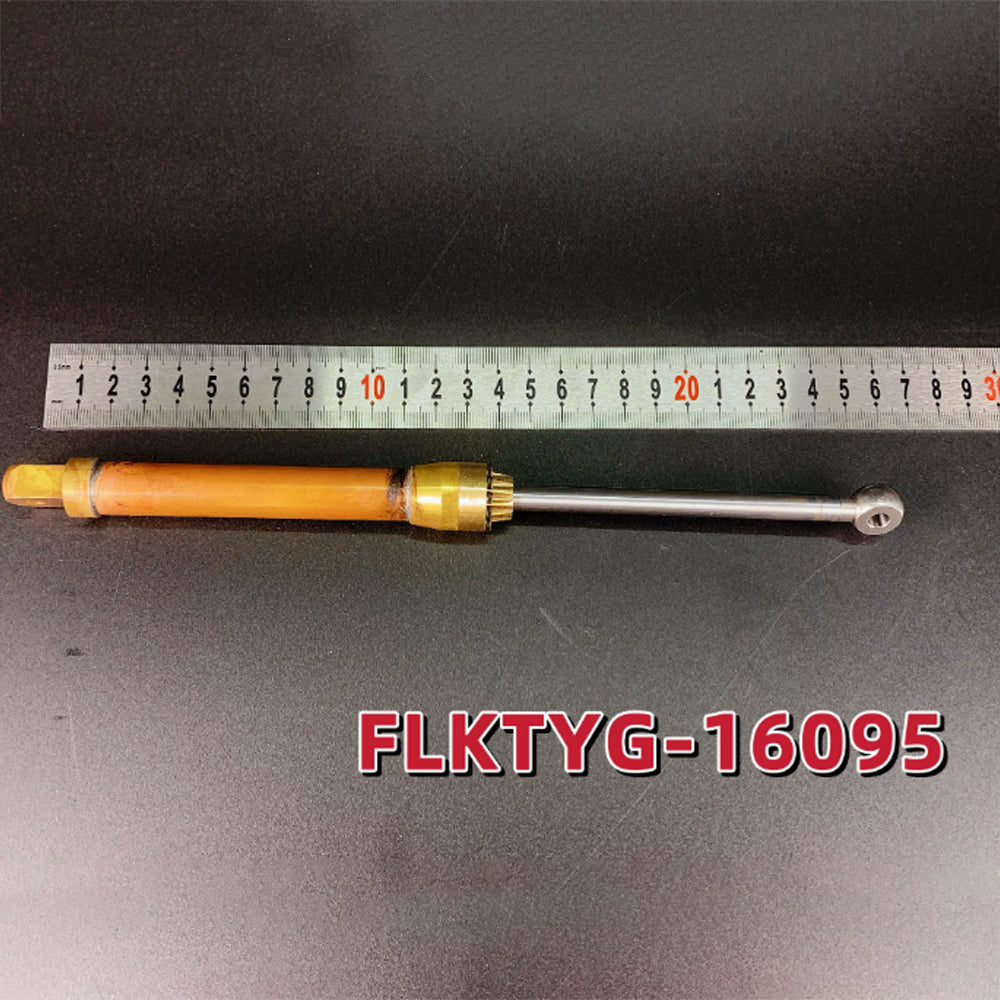

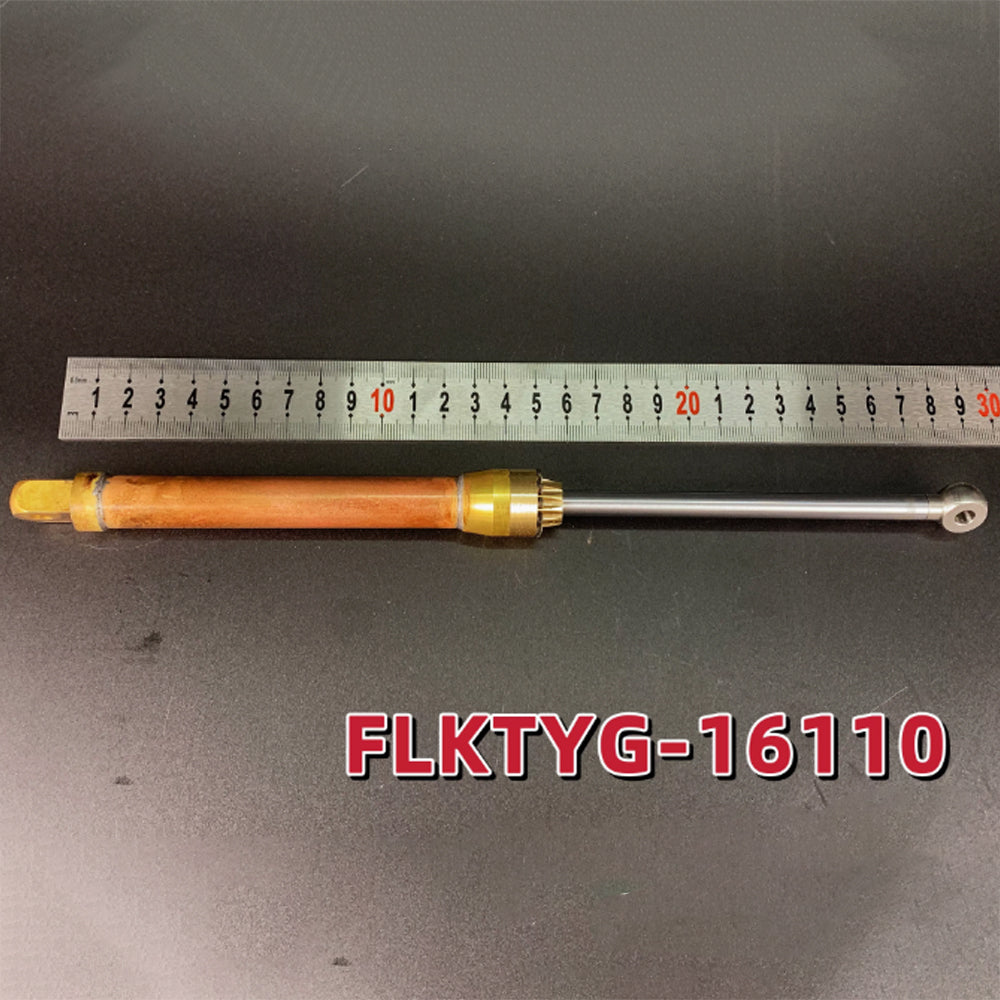

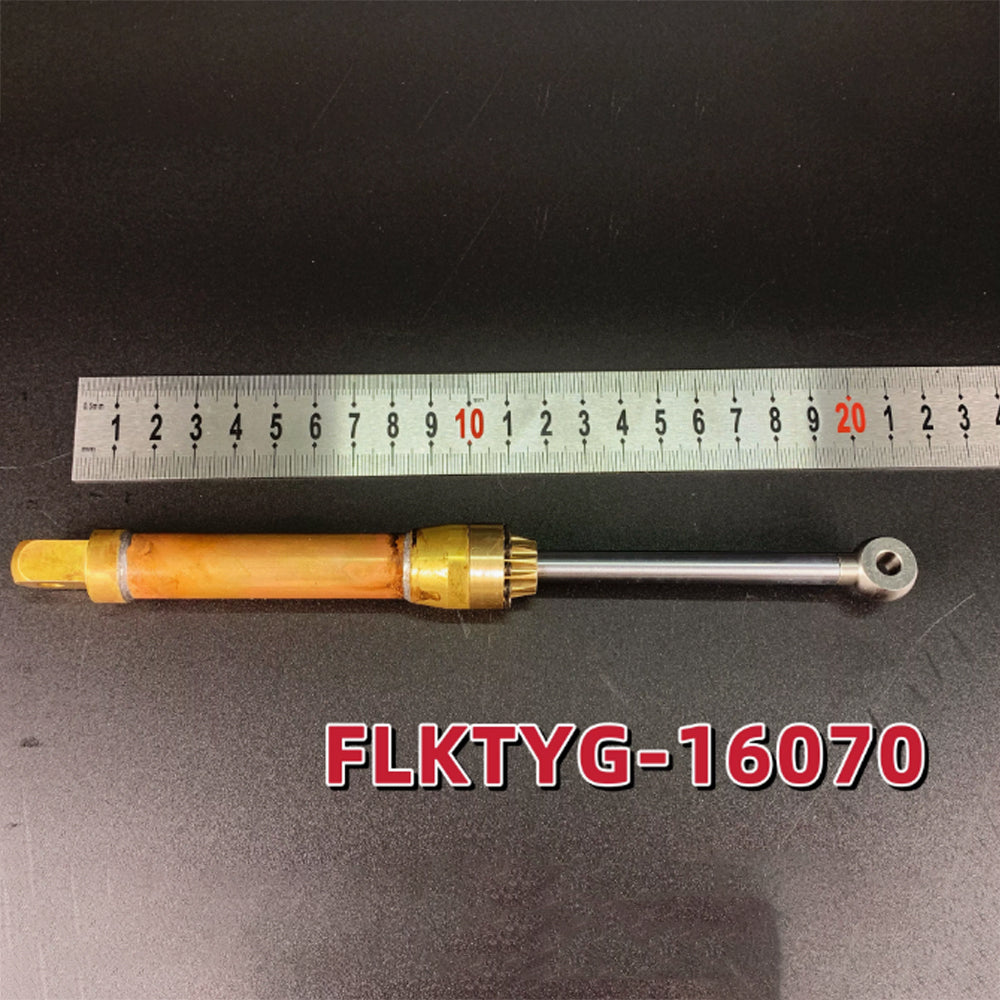

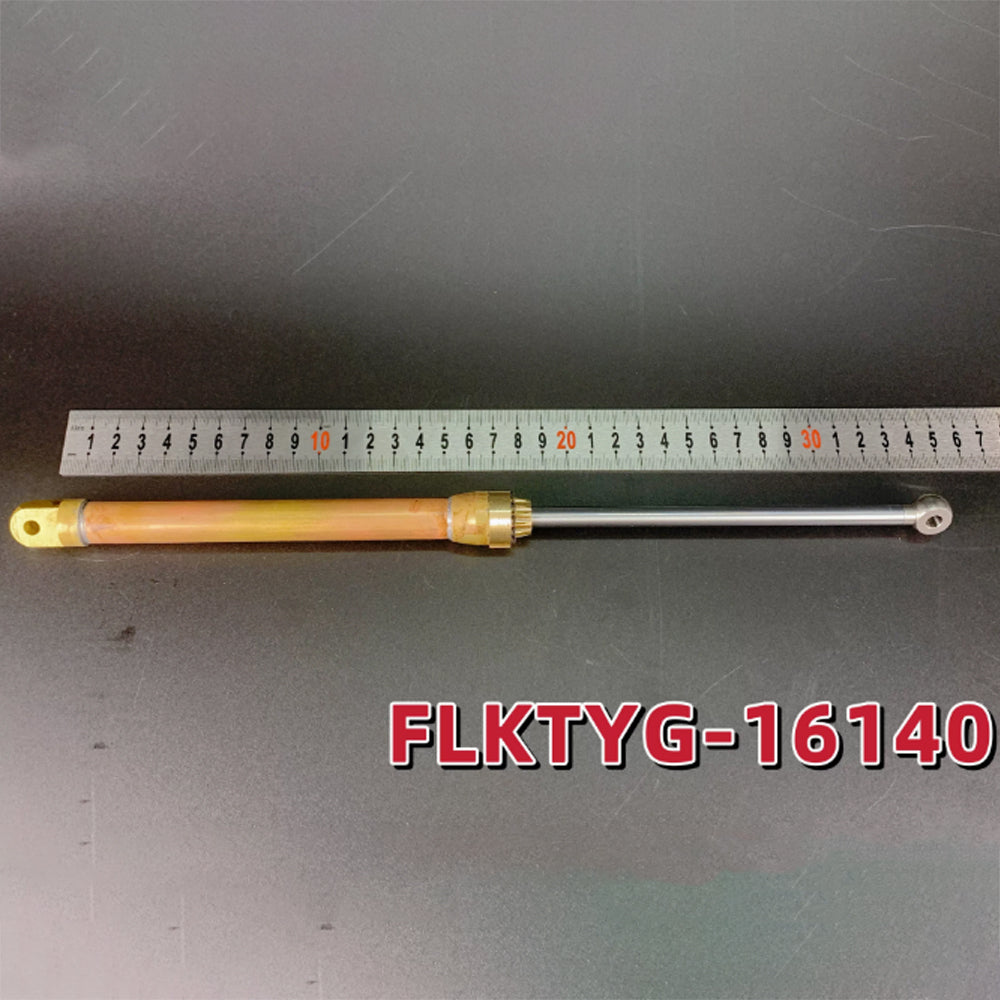

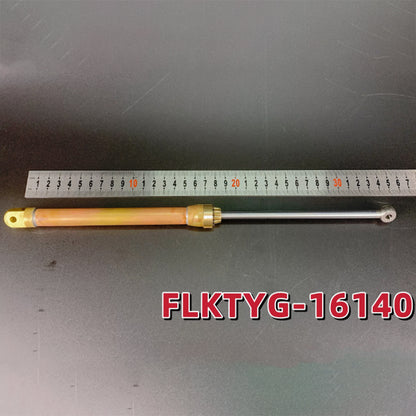

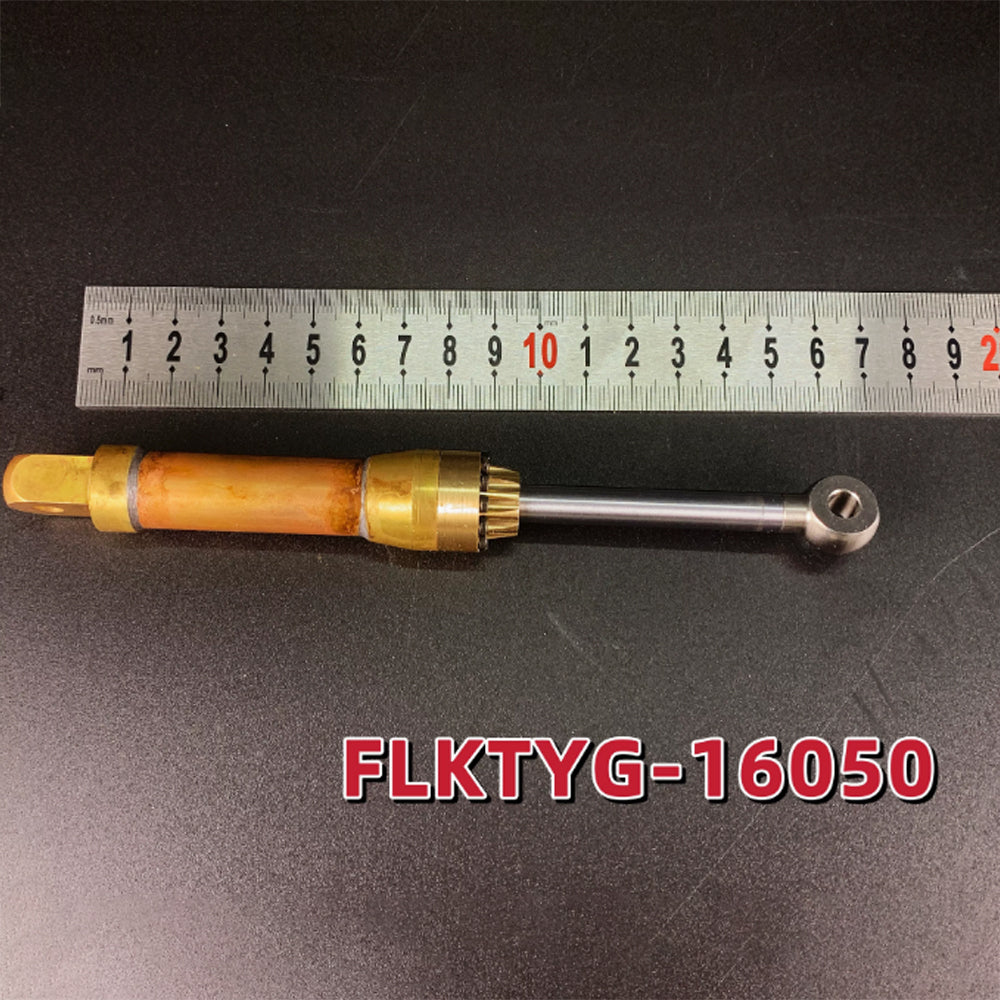

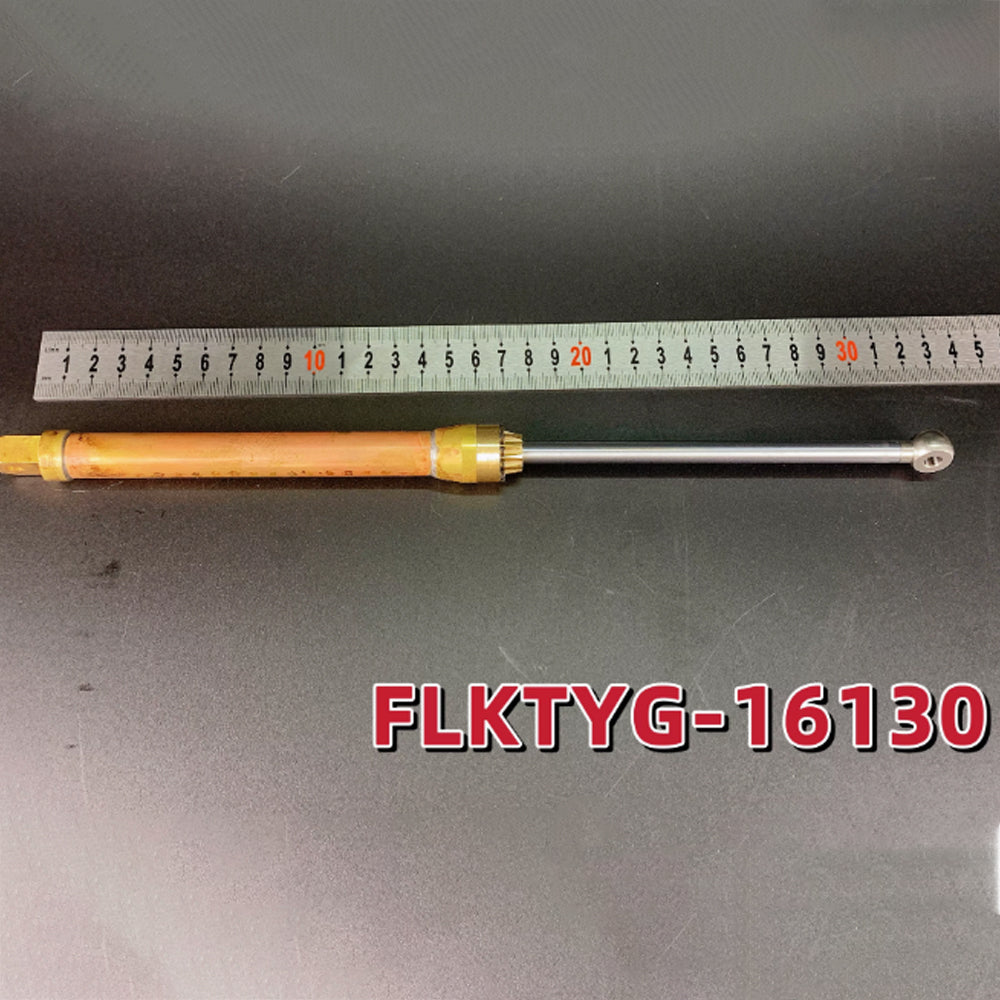

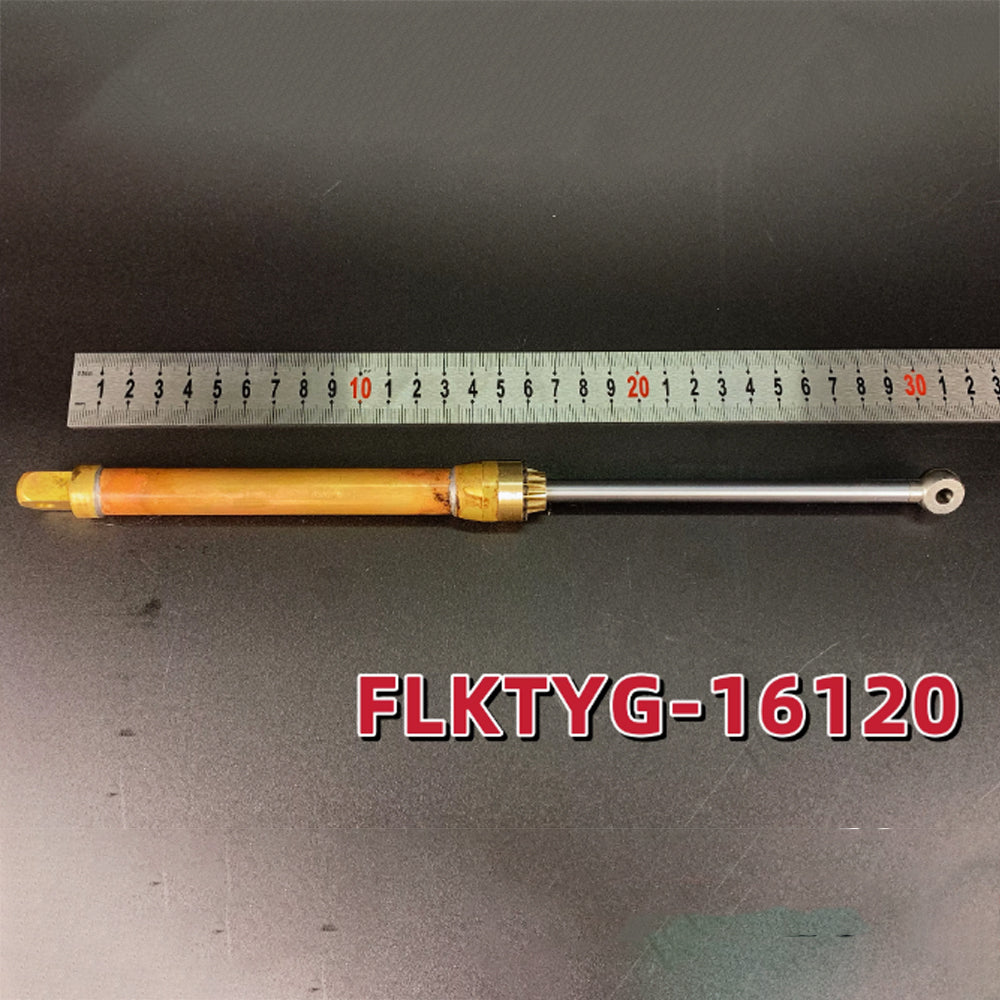

CUT-FLYG Excavator Micro Hydraulic Flange Cylinder High Strength High Simulation

Brand: CUT

Product model: CUT- FLYG

Product category: Excavator micro hydraulic flange cylinder

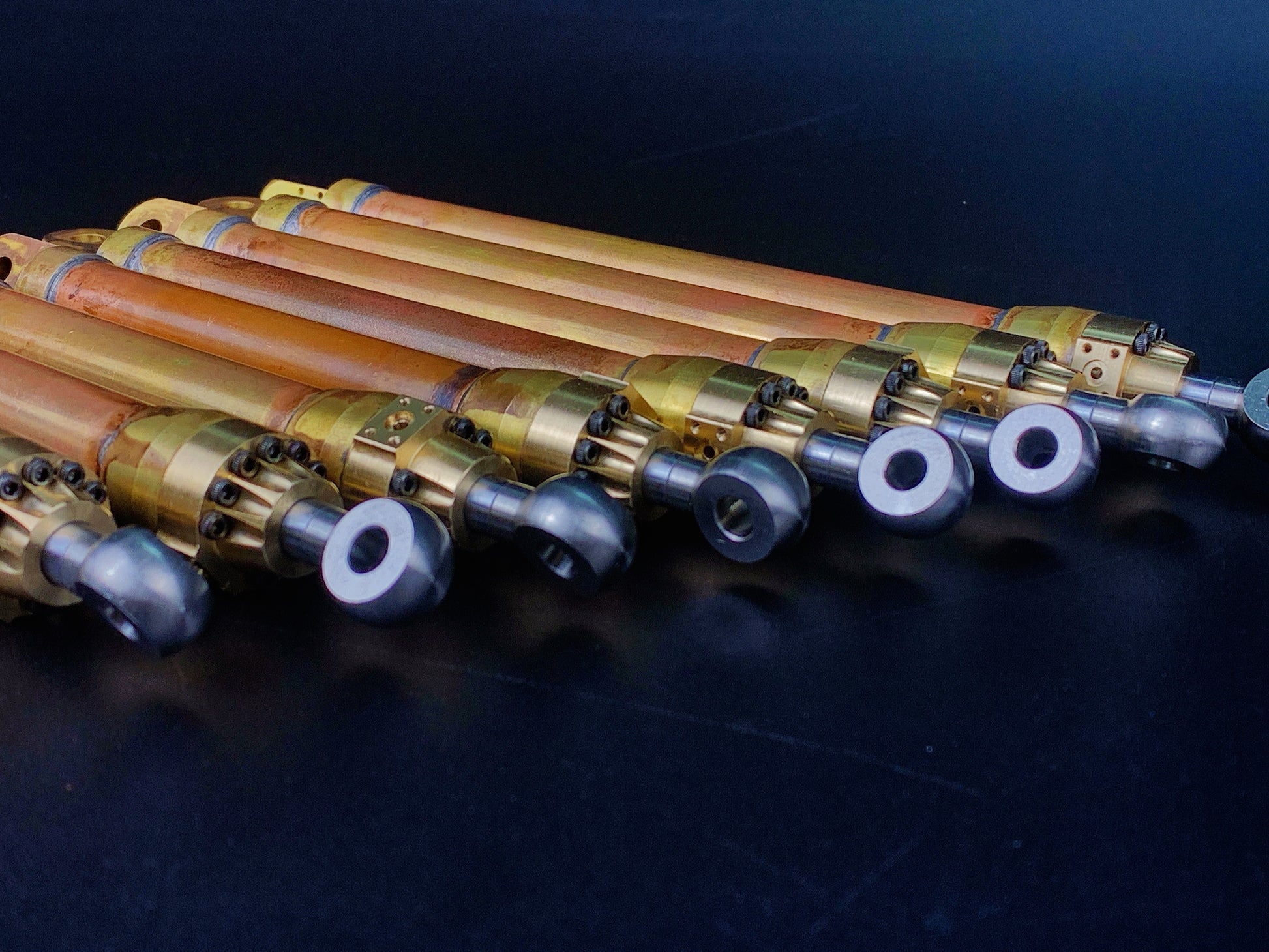

Flange cylinder is the result of this studio. The cylinder structure adopts the real cylinder structure. The oil seal can be replaced if it is worn. The finished product of all-copper high-precision processing and welding is imported from Taiwan. The oil seal is wear-resistant and high-temperature resistant.

Details are as follows:

Cylinder material: H59 brass + brass seamless mirror tube

Cylinder diameter: cylinder outer diameter 16MM

Cylinder ball head: stainless steel material Cylinder extension = 2x cylinder stroke + fixed cylinder stroke: stroke customization calculation method is cylinder retraction = cylinder stroke + fixed base (60MM) fixed base (the fixed base of the cylinder is
60)

Link hole diameter: hole diameter 6MM can be changed to 5MM with sleeve

Link width: 10MM

Cylinder strength: pressure resistance 8MPA, ultimate pressure 10MPA

Oil seal: Imported oil seal is used to resist high temperature and wear

Cylinder medium: No. 46 hydraulic oil

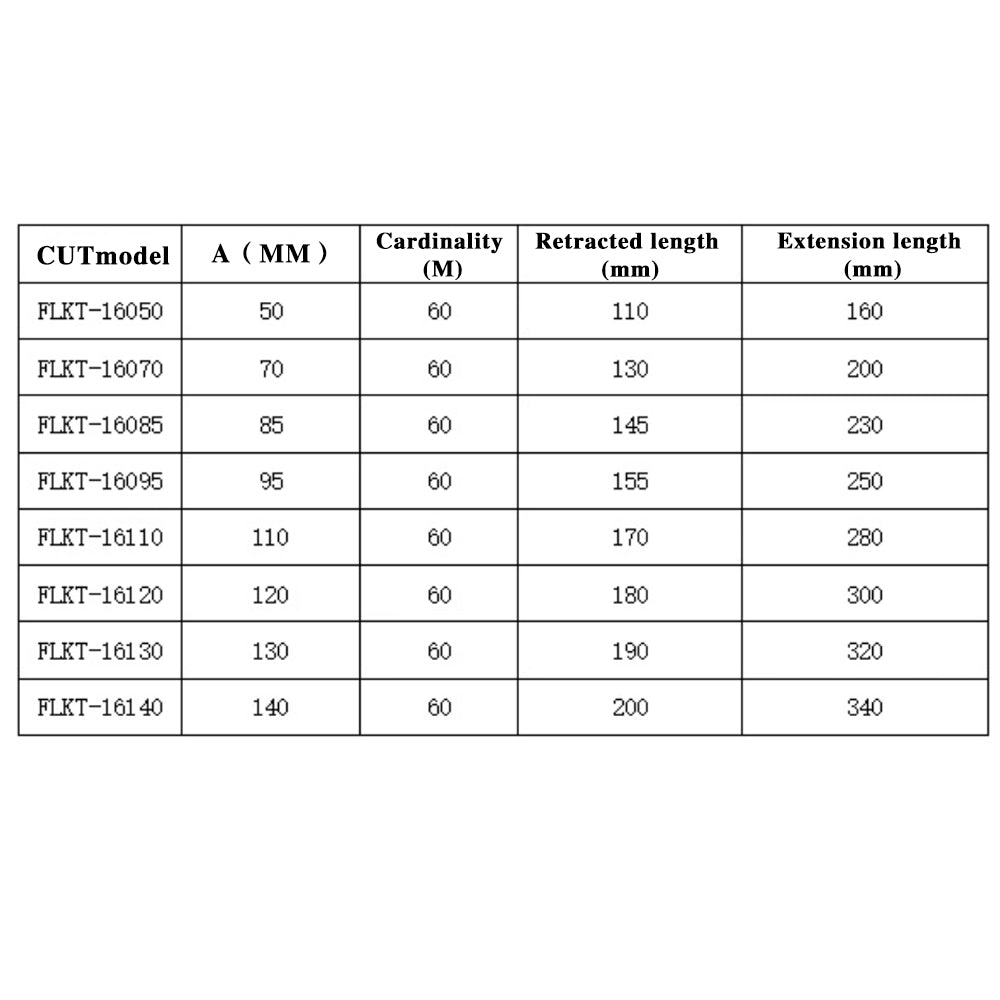

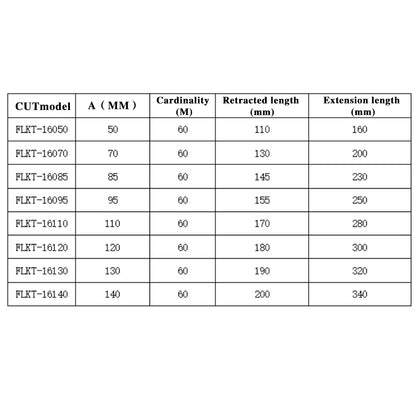

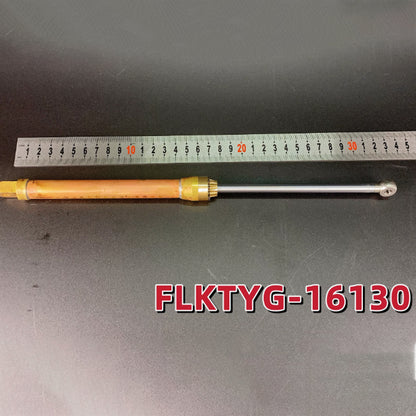

Cylinder stroke: As shown in the figure below, the A dimension in the figure represents the cylinder stroke
