JD Model V8 Engine Transmission Kit JDM-186-B
JD Model V8 Engine Transmission Kit JDM-186-B
JD
SKU:
Couldn't load pickup availability
Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.
Brand: JDM
Product model: JDM-186-B

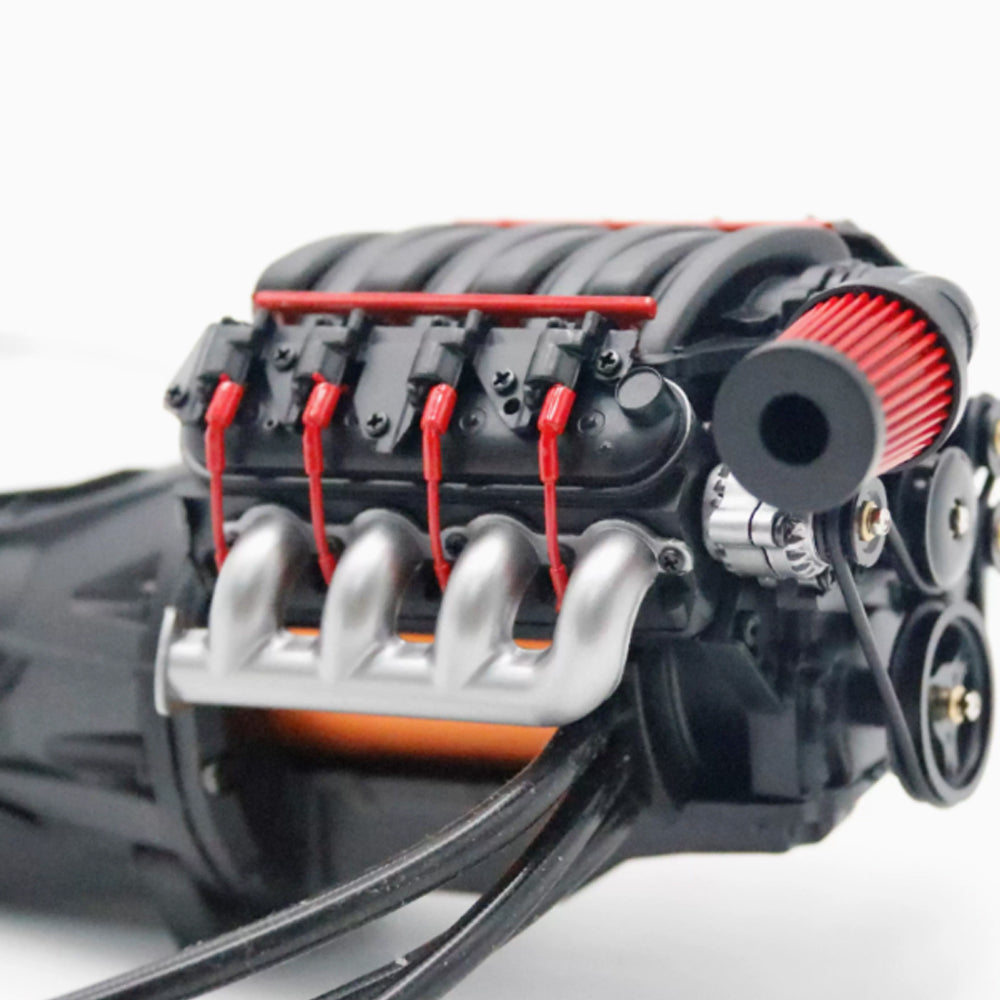

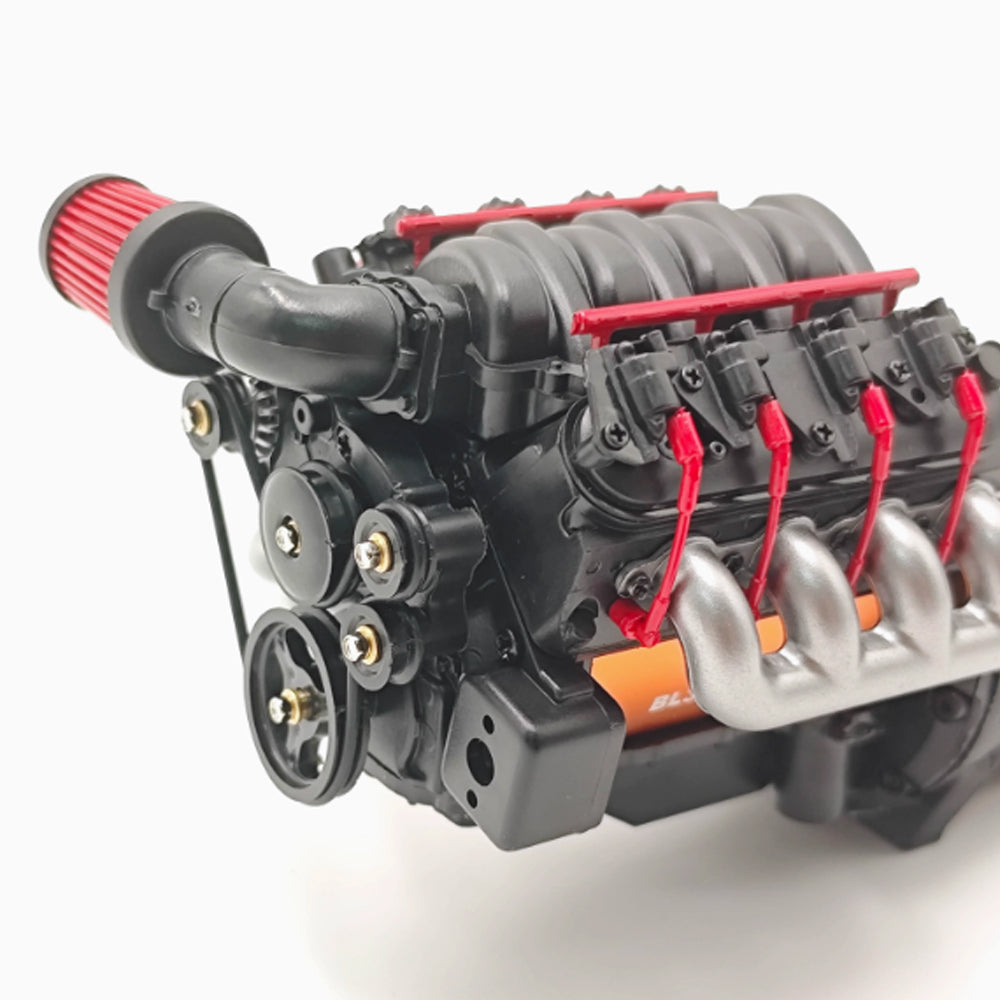

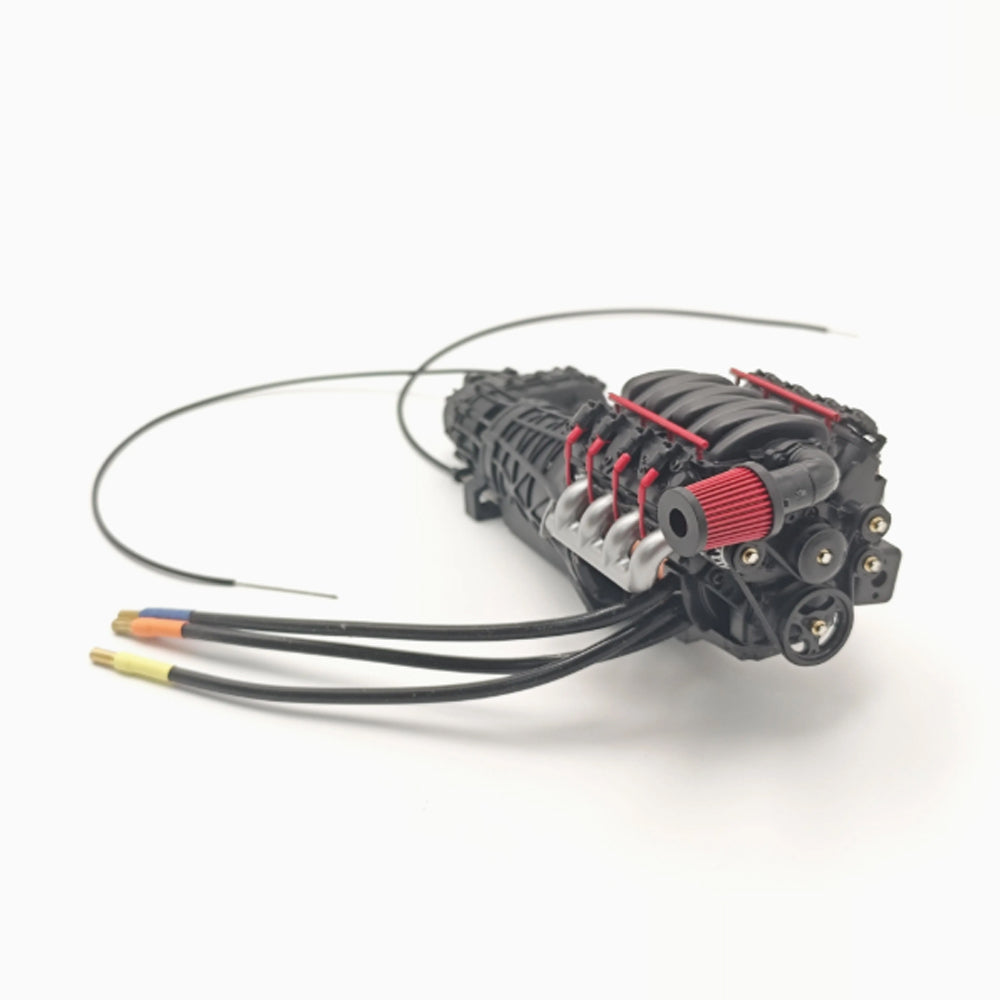

JDM-186-B V8 engine gearbox set model static point model JDM-186-C brushless ESC

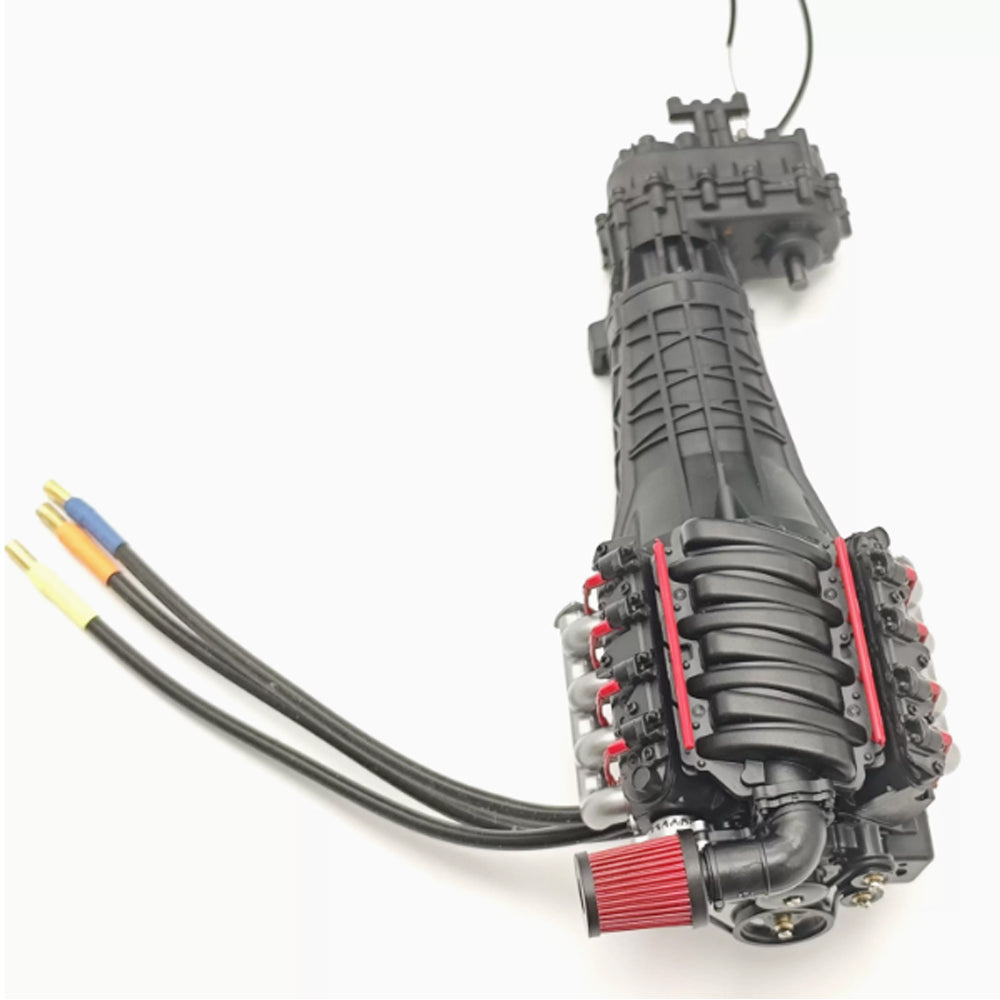

JDM-186-B gearbox
Motor teeth 12 teeth M0.8 Secondary gear 14 teeth MO.8 gearbox total reduction ratio 1st gear 17.4/1, 2nd gear 4.75/1 First stage planetary gear set M0.6 Second stage gear set M0.7
With high and low speed, the transmission can be interrupted. The front belt of the gearbox can be equipped with a motor to drive the belt to rotate, which can make the product more realistic
Standard brushless motor 3650-1200KV installed on Miller pipe frame car with a speed of up to 30KM/H

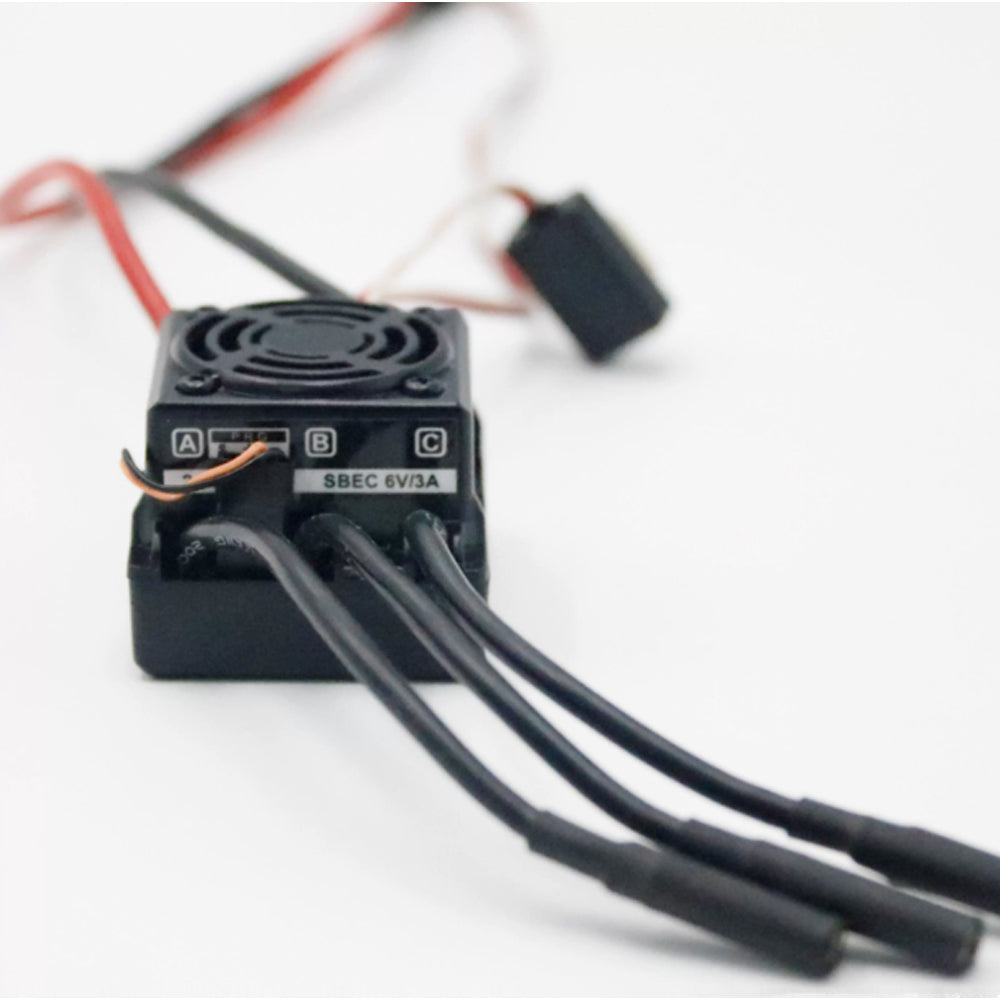

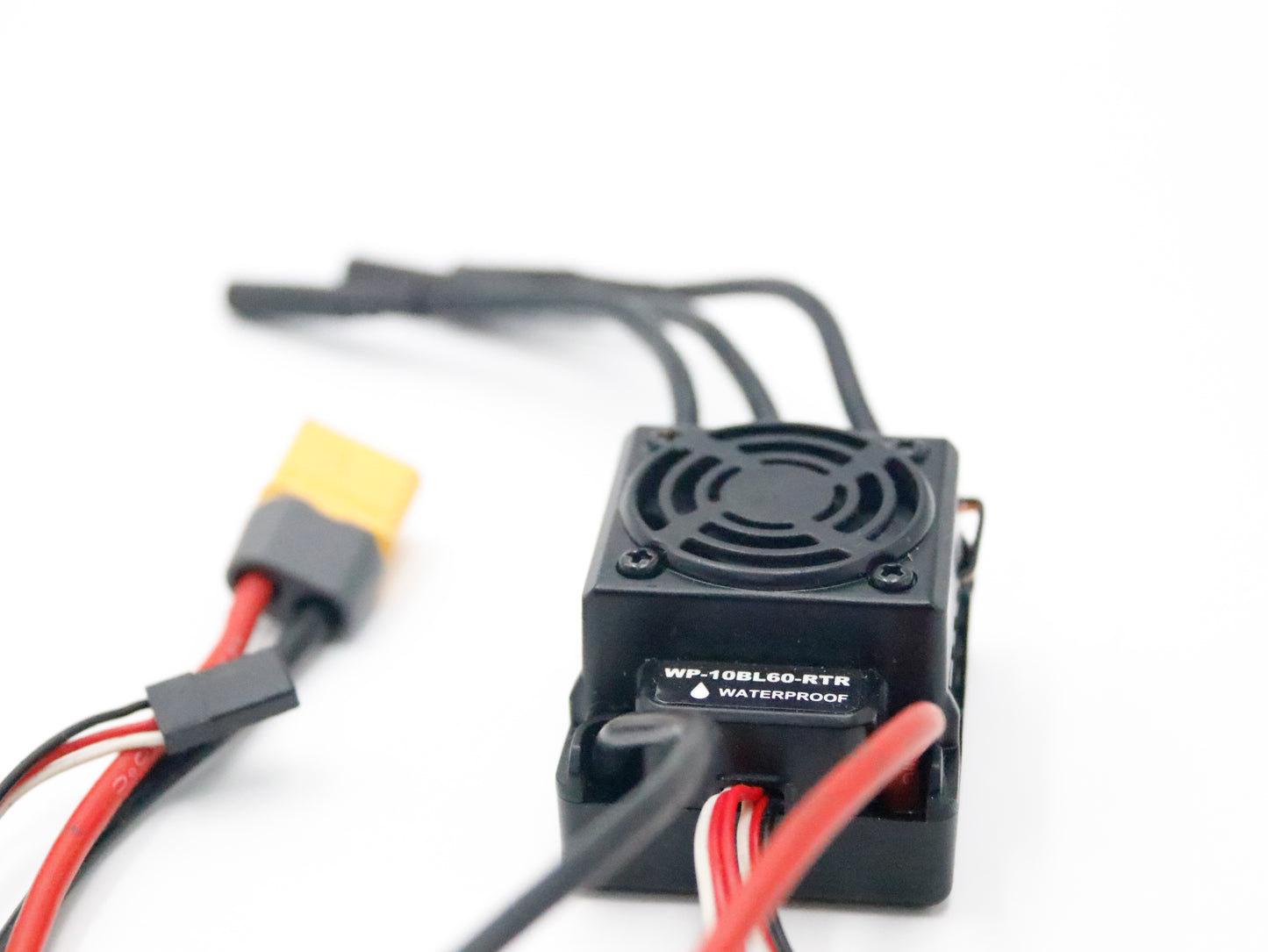

JDM-186-C brushless ESC
JDM-186-B product weight is 520g
Product size: 230mmx80mmx80mm
JDM-186-C product weight is 100g
Product size: 40mmx50mmx30mm
