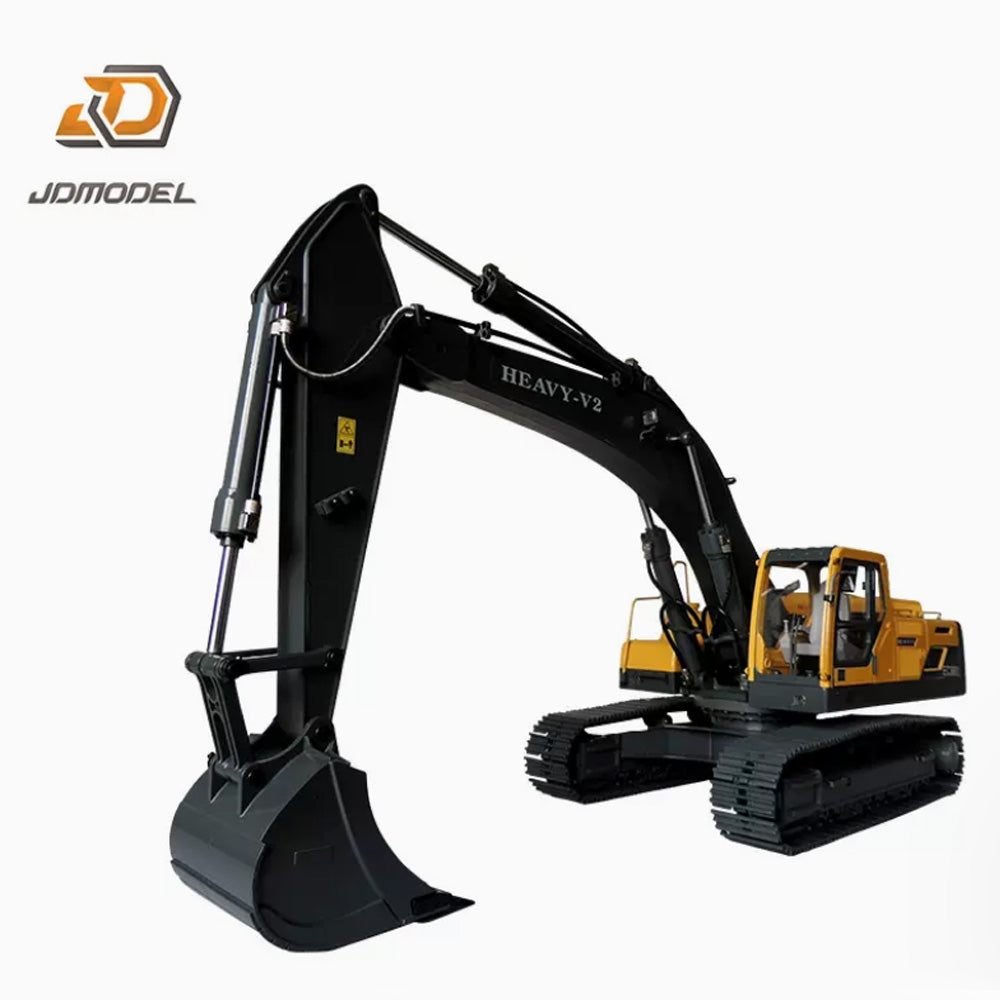

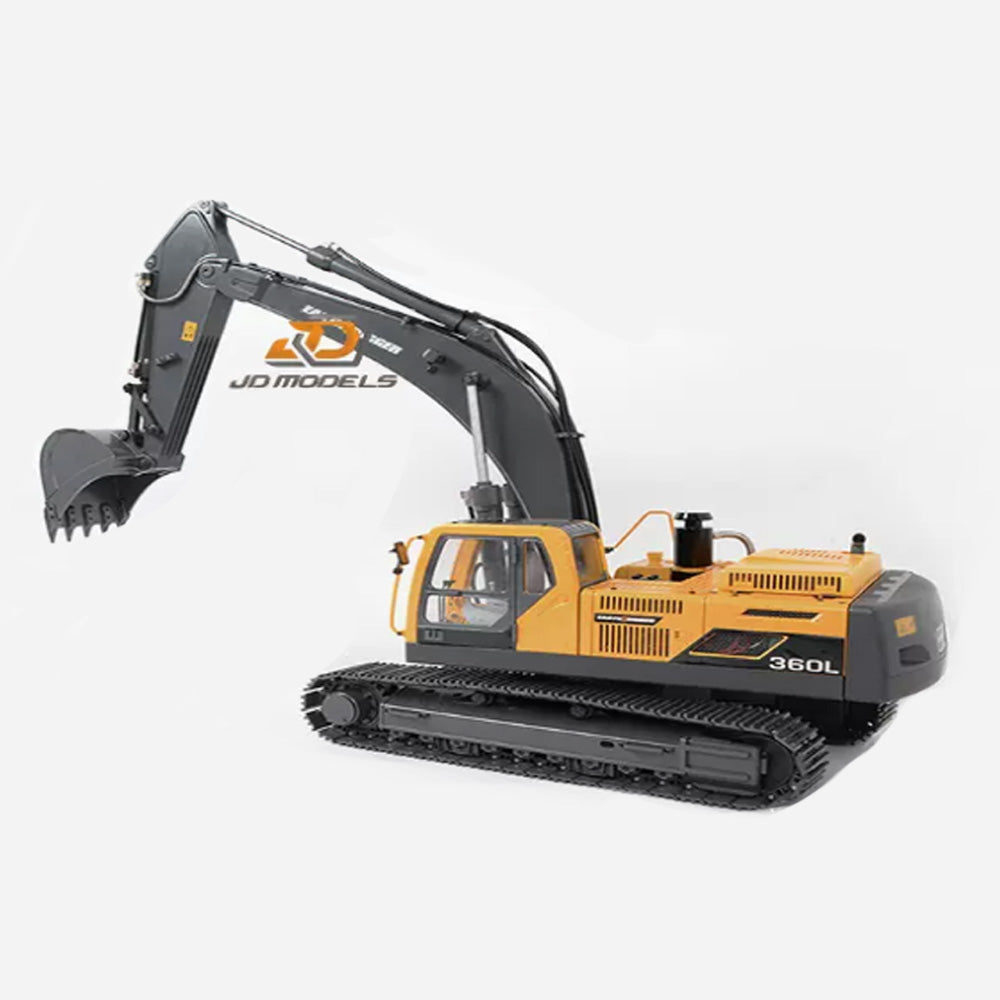

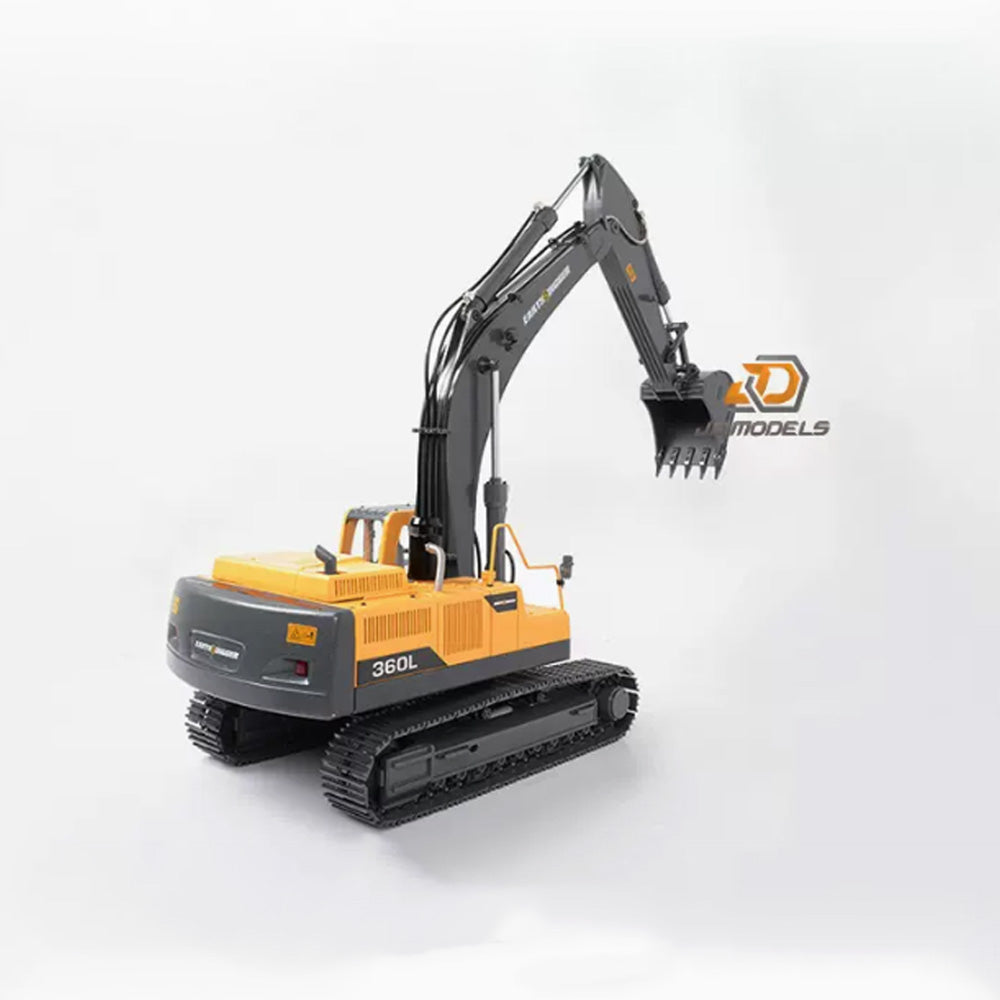

JDMODEL 1/14 Remote Control Hydraulic Metal Excavator Model JDM-106

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-106

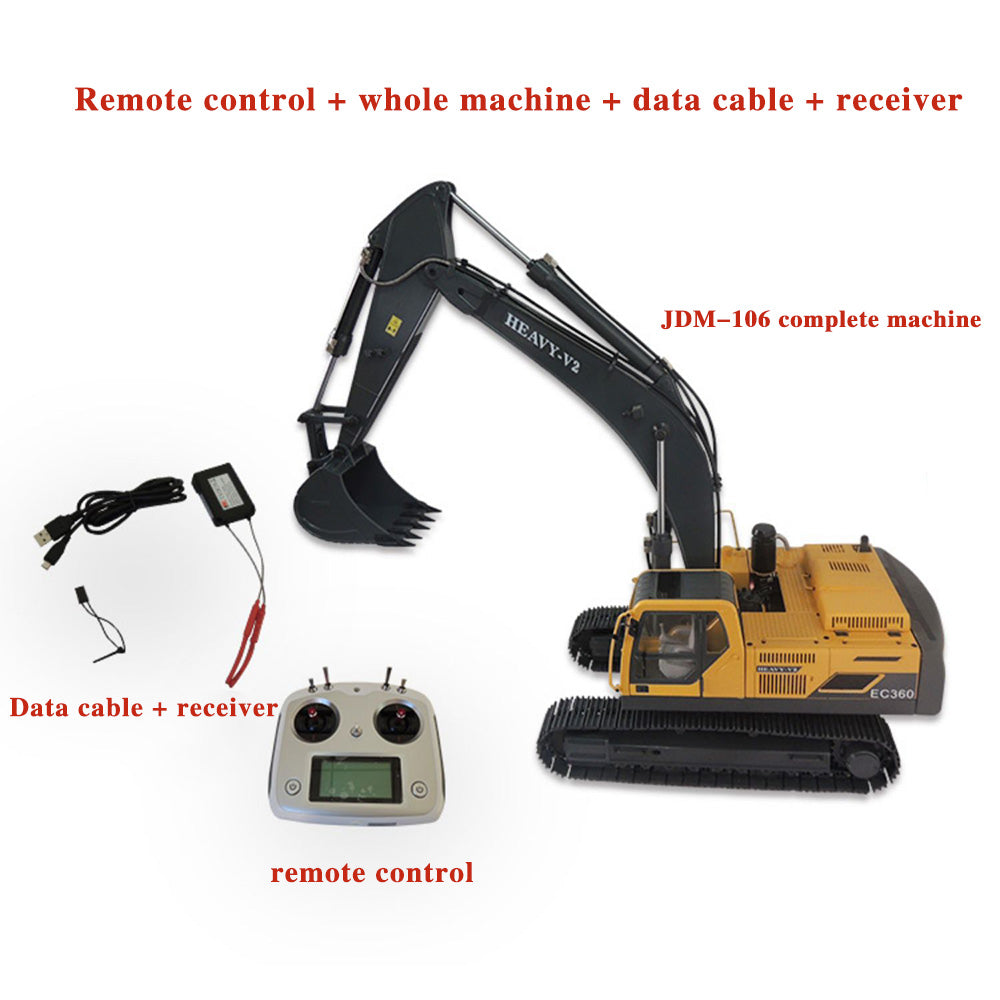

Complete vehicle version: The entire vehicle is equipped with electronic equipment and hydraulic system. The remote control does not come with batteries, sound group, and light group.
Features of JDM-106 excavator:
1 The whole body is made of zinc alloy die-casting (not 3D printed)
2 The hydraulic system with arm priority function ensures smooth three-axis linkage movement. The special structure valve makes it highly sensitive and can move forward and backward quickly
3 The travel and turntable motors are driven by brushless motors to provide strong torque

Net weight: 26.5KG
Packaged size: 980*445*350MM
The whole vehicle plus packaging is 33.5 kg
Material: The body is mainly made of zinc alloy, aluminum alloy, the travel parts are 45 steel, the hydraulic pump and hydraulic valve are chrome steel
Hydraulic cylinder is stainless steel and brass
Body size: length * width * height: 827*246*260mm (top of the cab)
Outer edge width of the track: 248MM
Rising force 15KG, theoretical lifting force 60KG,
Digging radius 820 (mm)
Digging depth 516 (mm)
Digging height 833 (mm)
Unloading height 500 (mm)
Boom rotation angle (left/right) (infinite rotation) Chassis ground clearance 36 (mm
Remote control: FS-16S, use 4 No. 5 batteries or 3S lithium batteries (please note the positive and negative connection method) Batteries need to be purchased separately
Power supply voltage: 12V, use 3S lithium battery 5200MHA, (length 160MM width 51MM height 73MM size)
Two pieces can be placed in parallel to extend the working time, and the battery needs to be purchased separately
Hydraulic pump: flow 1.2L/MIN, rated pressure 2.5MPA (the hydraulic system uses No. 32 hydraulic oil by default)
Directional valve: 3-way mid-position return high-power directional valve Sound group system: need to be purchased separately (installation service is not provided) Light group system: need to be purchased separately (installation service is not provided) Packaging uses carton foam

Please unpack and check after receiving the goods. If there is any damage, take a photo and send it to us immediately, and we will follow up in time
