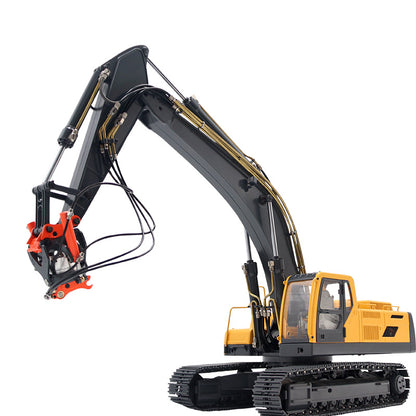

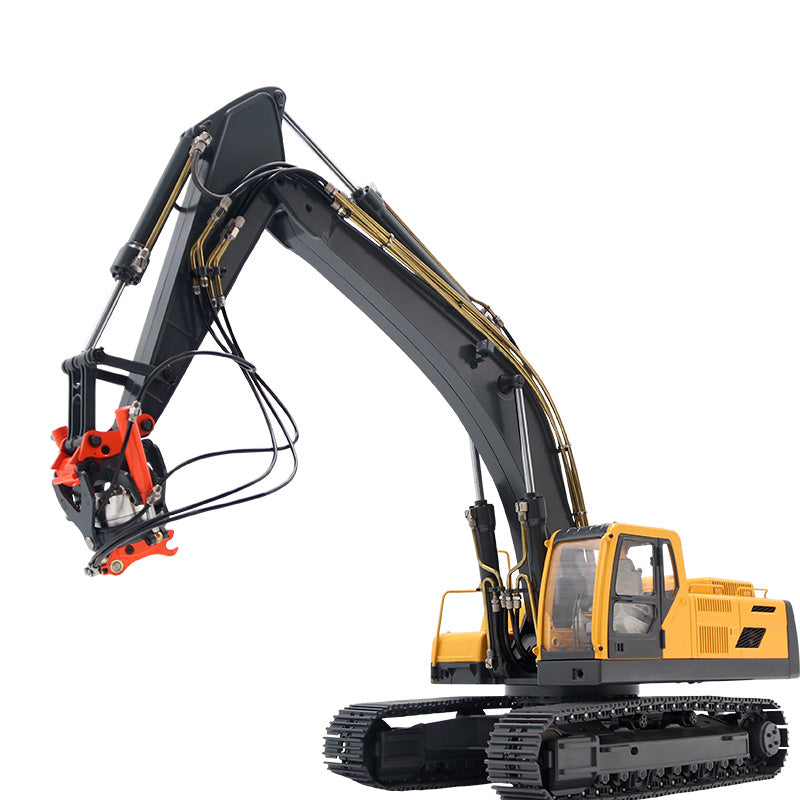

JDMODEL JDM-106Q Excavator Model Multi-function Quick Change v2, RC Hydraulic Engineering Machinery Special

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-106P

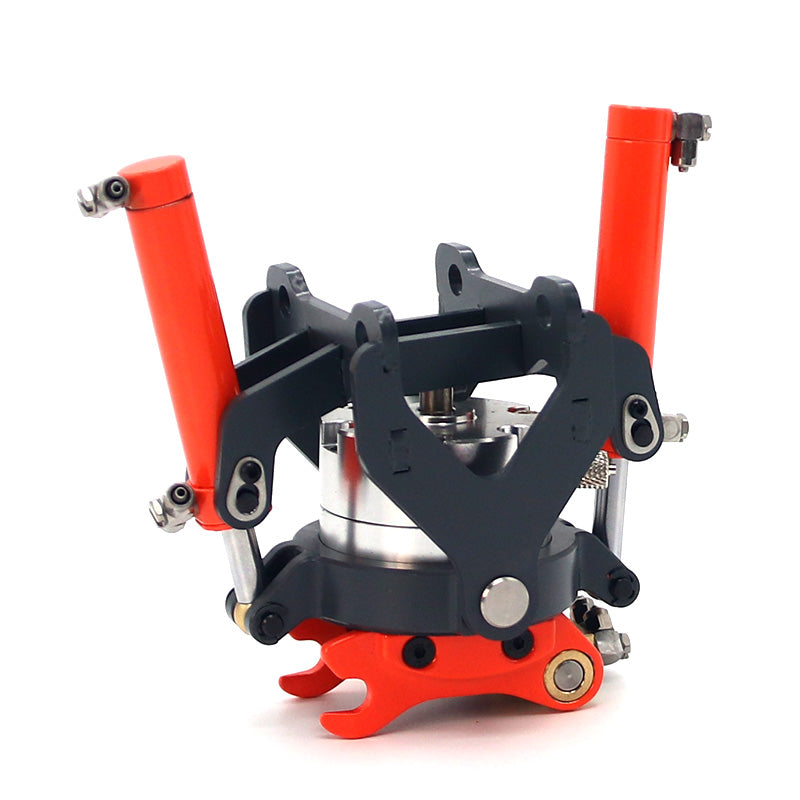

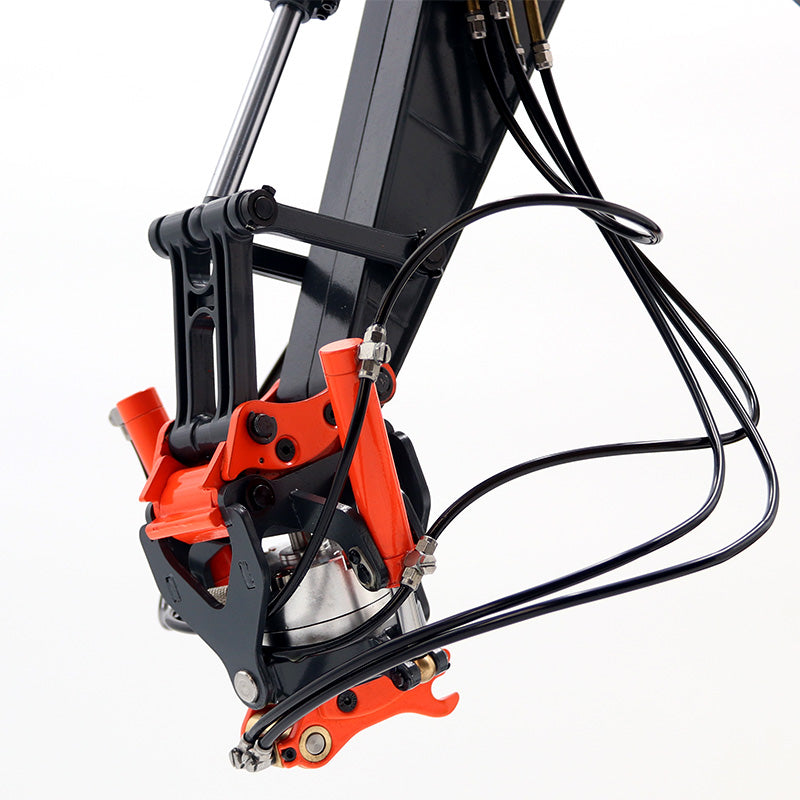

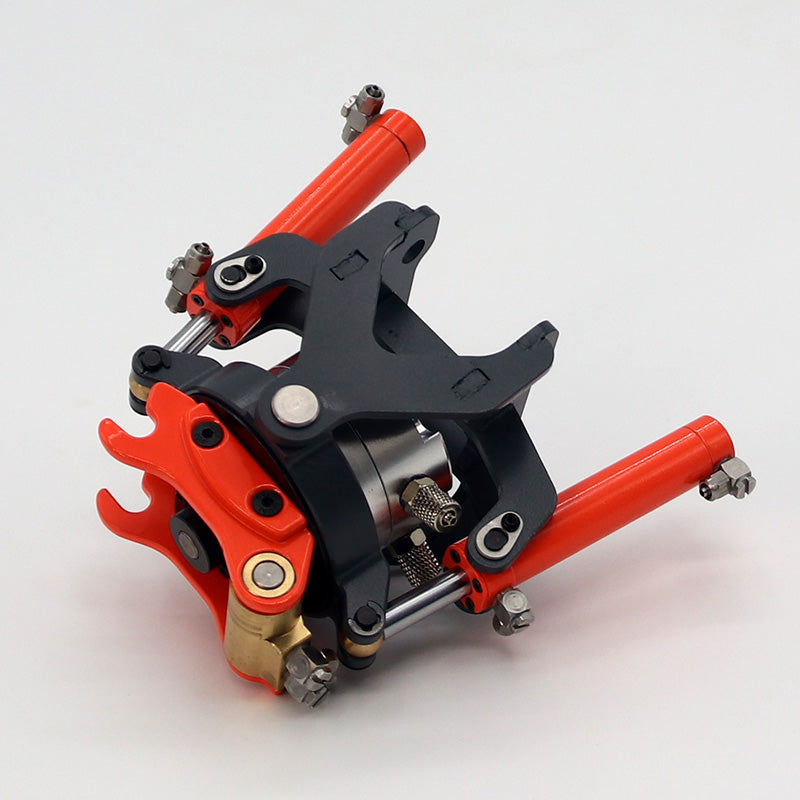

JDM-106Q Hydraulic Quick-Change V2 Remote Control Hydraulic Engineering Machinery Excavator Model Dedicated

Model Scale: 1:14

Material: Brass, Steel, Aluminum Alloy

Hydraulic Quick-Change Size: Length 106, Width 122, Height 70, Unit MM (excluding oil pipe)

Weight: 0.53 KG (net weight)

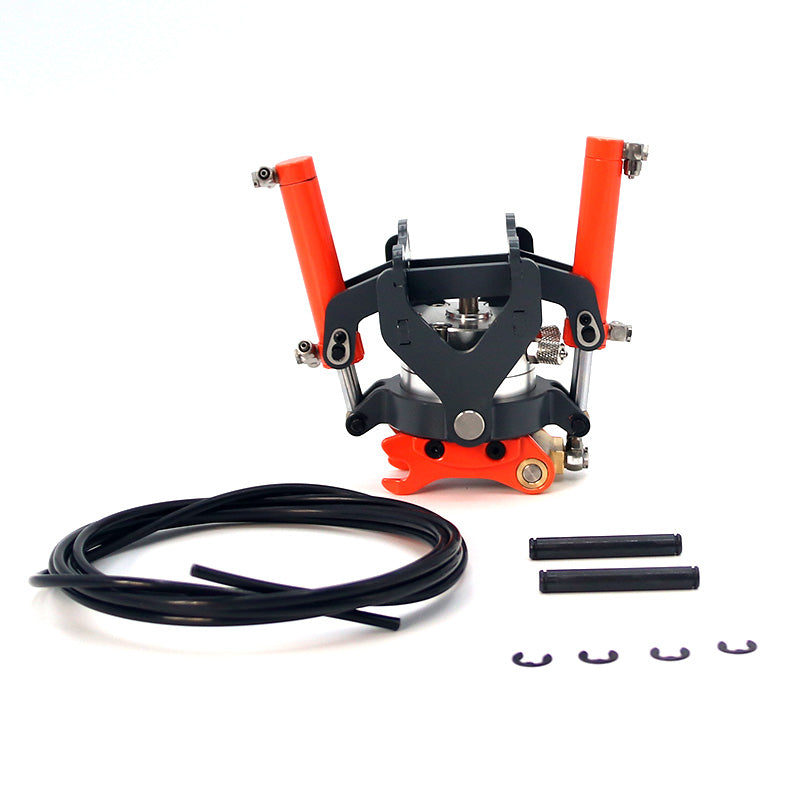

Standard: pin + E-type retaining ring; φ3.2 black high-pressure oil pipe 2 meters

Performance description:

Hydraulic quick change (three-way oil circuit)
Can rotate left and right more than 270° (left rotation 100°; right rotation 180°)
Swing tilt angle 32 degrees
Two-way oil cylinders act simultaneously to fix and remove various buckets of excavators
Meet excavation operations at various angles

Remarks (need to purchase product instructions separately):
This hydraulic quick change upgrade kit needs to be added:
JDM three-position valve (JDM-99), M5-3 special oil nozzle, steering gear, upgraded steering gear mounting plate, oil pipe fixing clamp
The oil circuit needs to be upgraded (outer diameter φ3.2MM high-pressure oil pipe and special oil nozzle)
Need to purchase a remote control separately (more than 10 channels)
