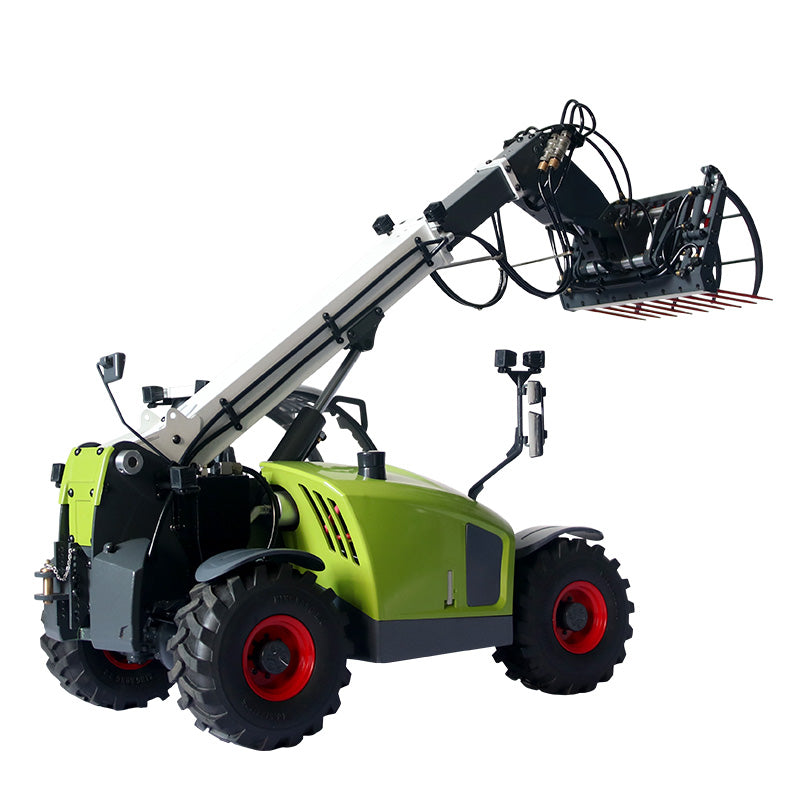

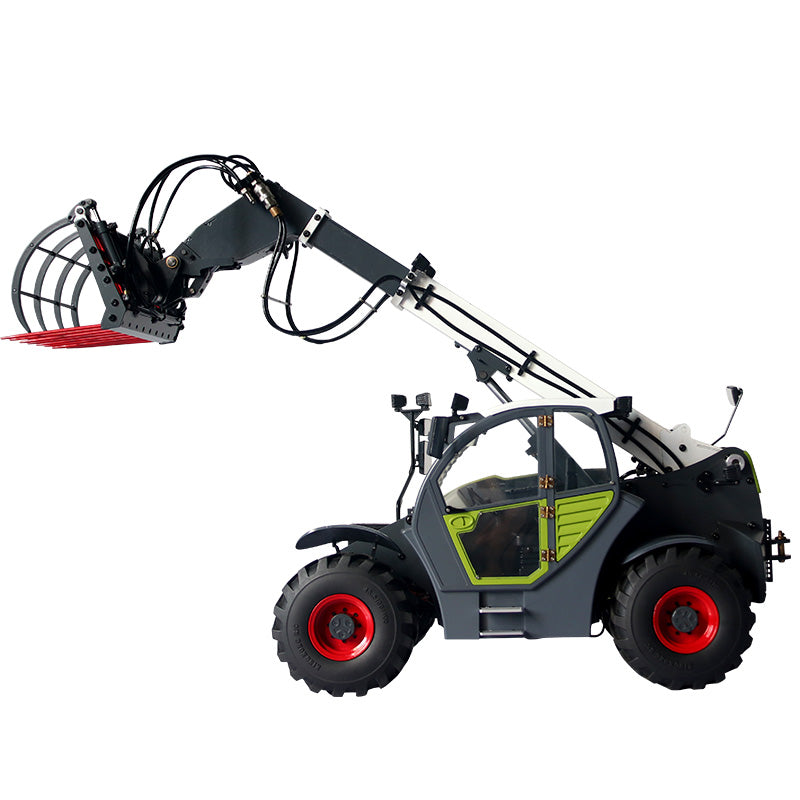

JDMODEL JDM-128 RC Hydraulic Telescopic Forklift Model, Multi-function Forklift & Loader

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-128

Scale: 1:14

Dimensions: length 553, width 220, height 232, unit MM

Weight: 9.12KG, plus remote control 9.6KG

Packing size 860*370*340MM,
Packing weight 13.6KG

Lifting force:

A. Telescopic arm retracted 4 kg

B. Telescopic arm extended 1.5 kg

C. Bucket flipping force 2 kg

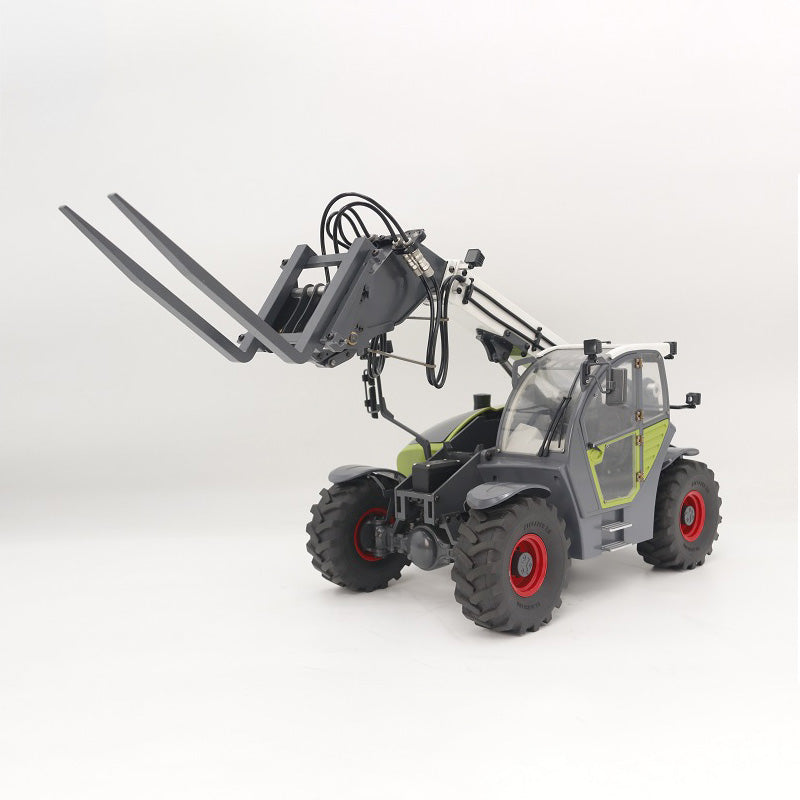

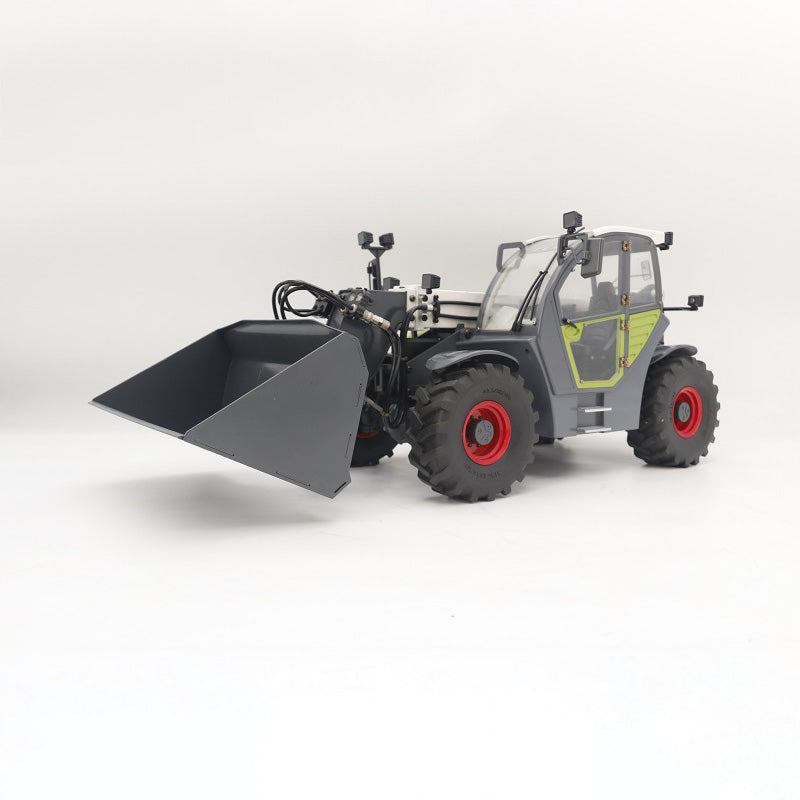

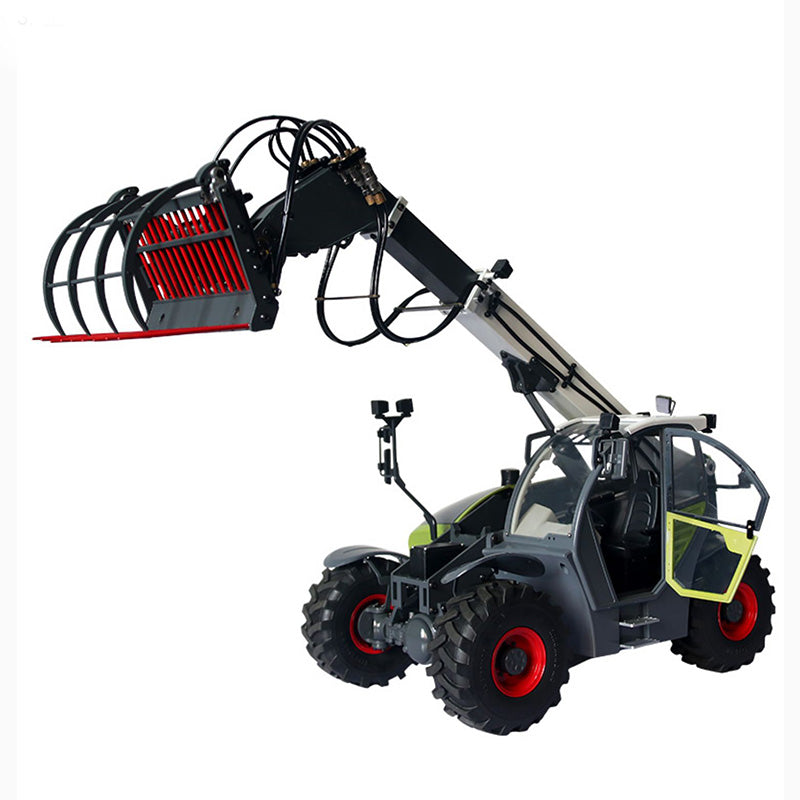

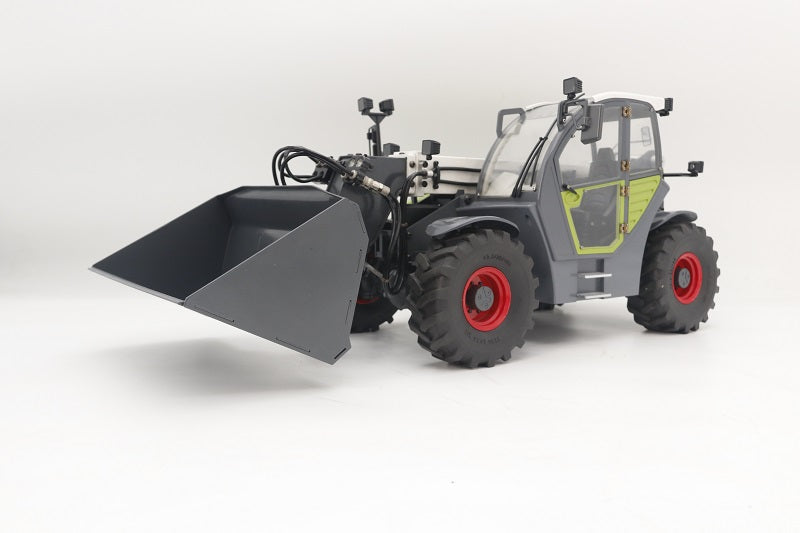

Standard accessories for the whole vehicle: bucket + fork + hydraulic grip, front and rear axles are equipped with differential locks, front and rear axles can be steered, four-way hydraulic valve, with hydraulic quick release, tool replacement is faster

Battery description:

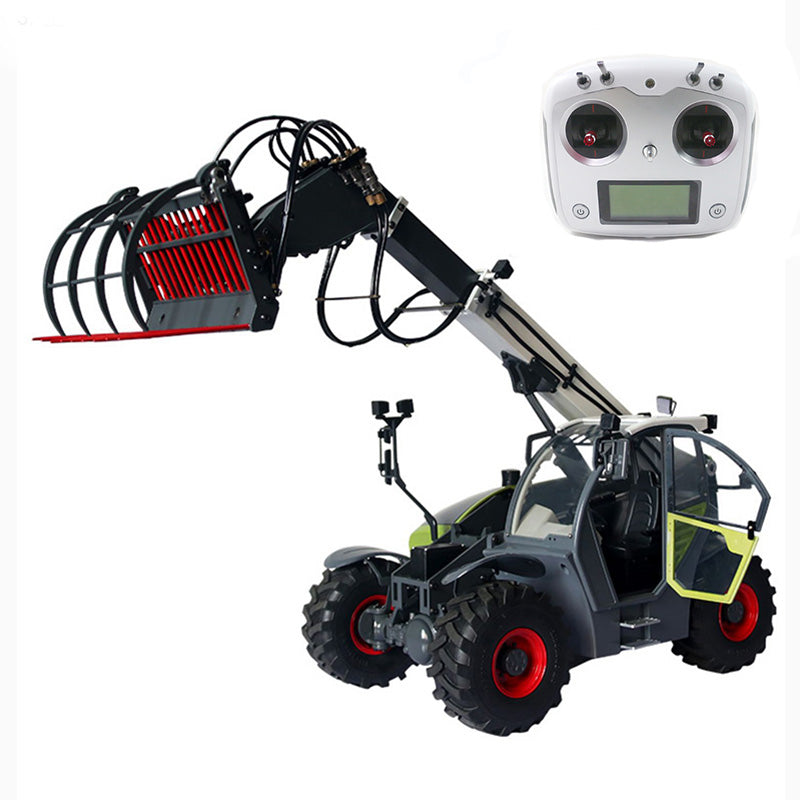

1. Remote control Fushi 16S uses 4 No. 5 batteries

2. Main vehicle battery: 11.1V 3S lithium battery (battery connector is XT60) 3. Battery size: 100MM long, 35MM wide, and 35MM high. The battery, charger, and power display need to be purchased separately)

III. Power-on operation steps:

1. Confirm that the remote control CH5/8 switch position is upward and the CH6/7 switch is in the middle position. The joystick returns to the middle position and confirms that it can be turned on

2. Turn on the remote control switch (press and hold both switches for 2S at the same time). The interface shows that it is turned on and confirmed. 3. Connect the battery to the main vehicle power supply and wait for the signal sound (about 5S).

Operation Note:

1. If the power-on operation sequence is reversed, the ESC will enter the setting mode, causing the ESC to not work properly.

2. Remote control battery installation: pay attention to the positive and negative poles of the battery during installation

3. Before installing the main vehicle battery: measure the voltage first, and the voltage cannot be lower than 11V.
