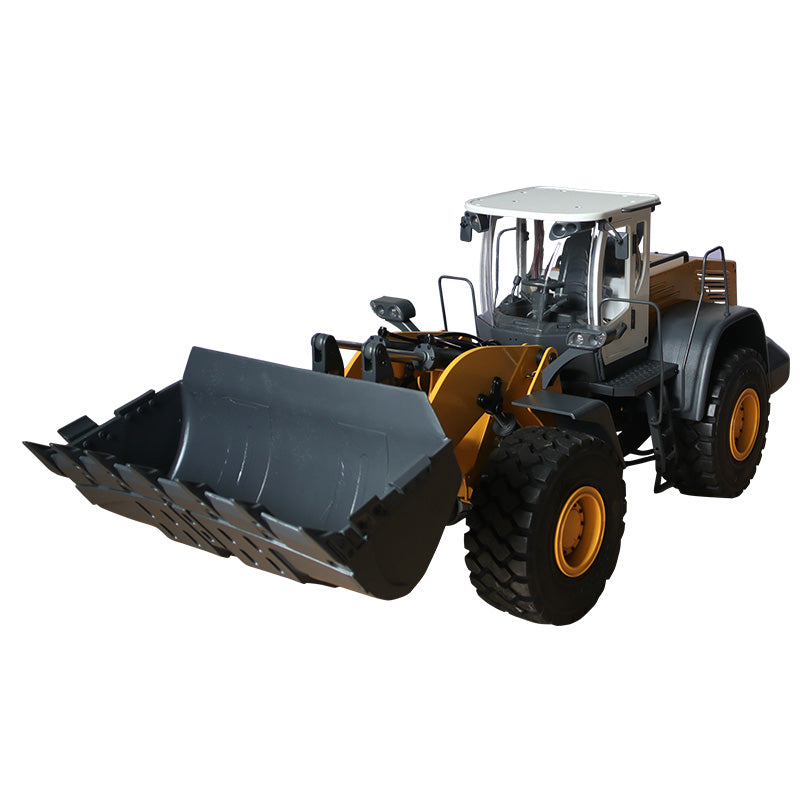

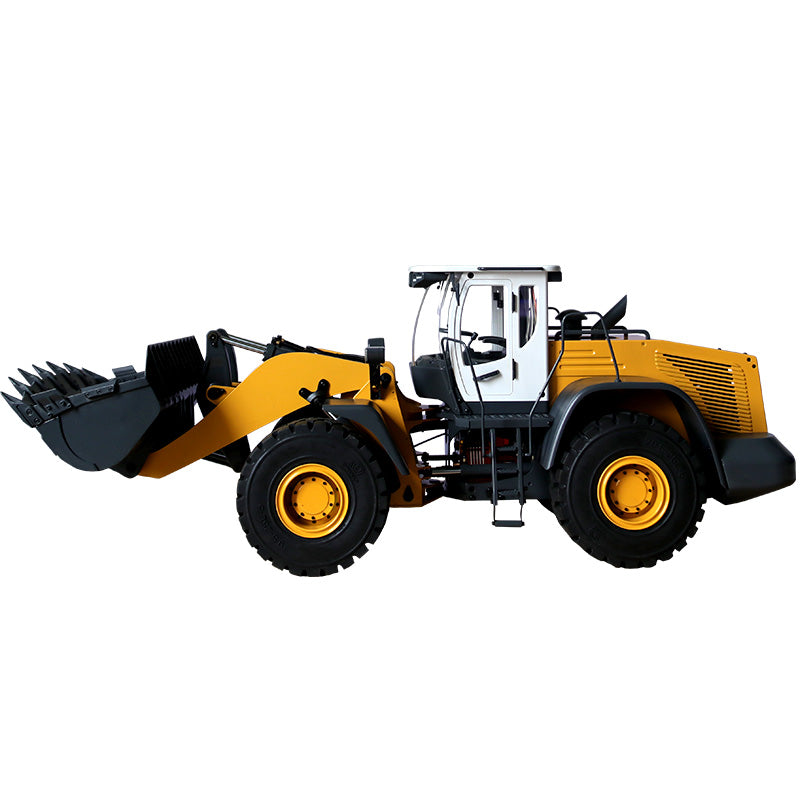

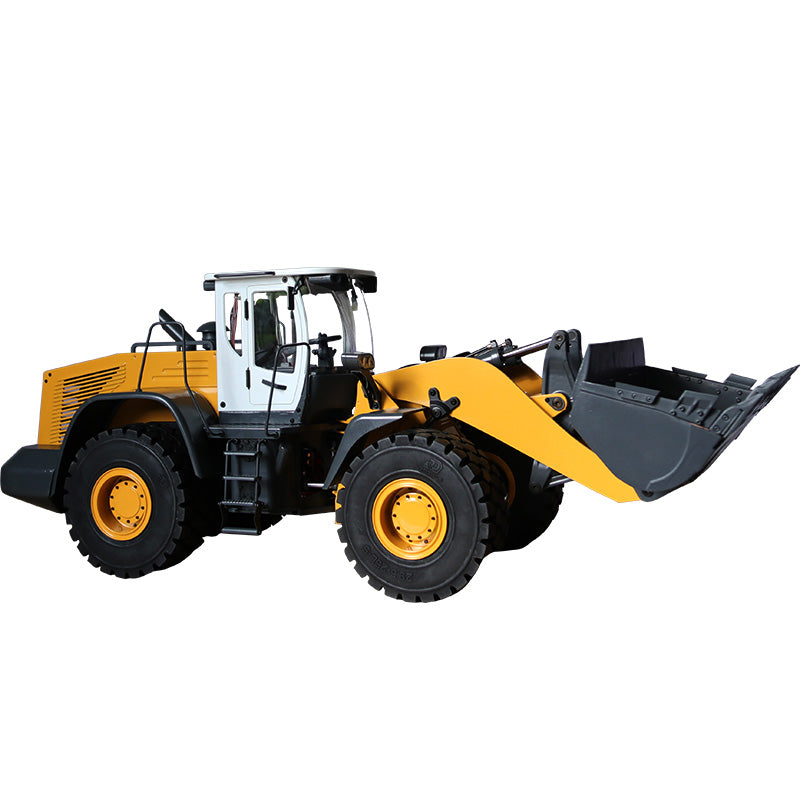

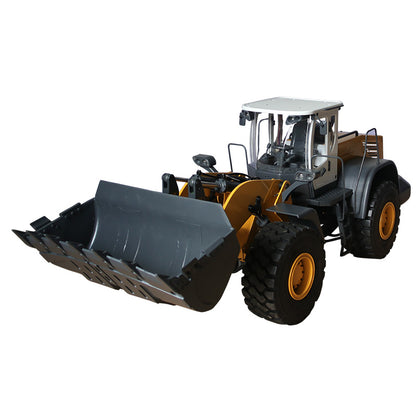

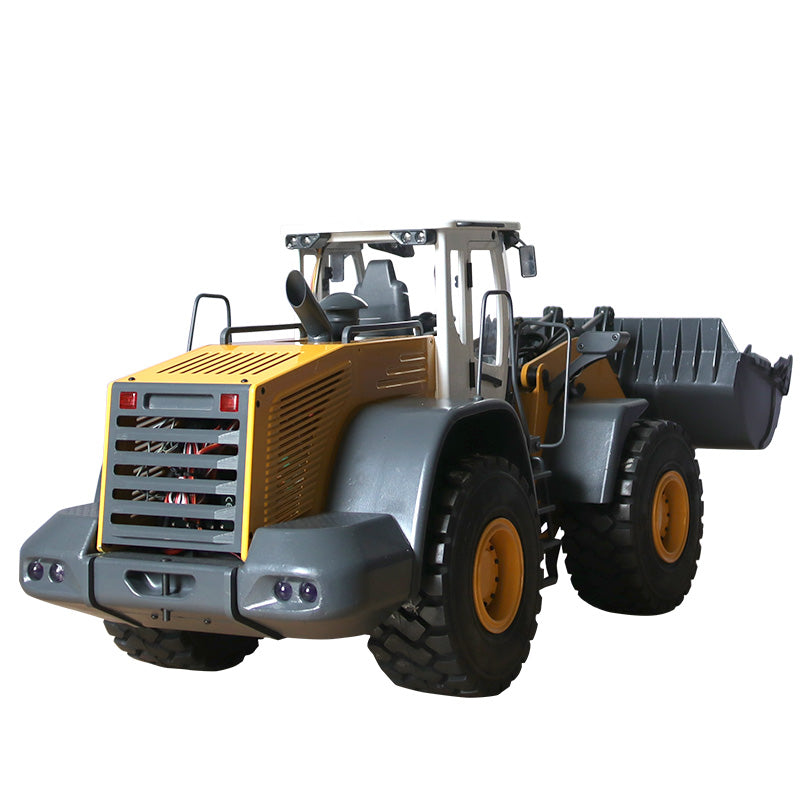

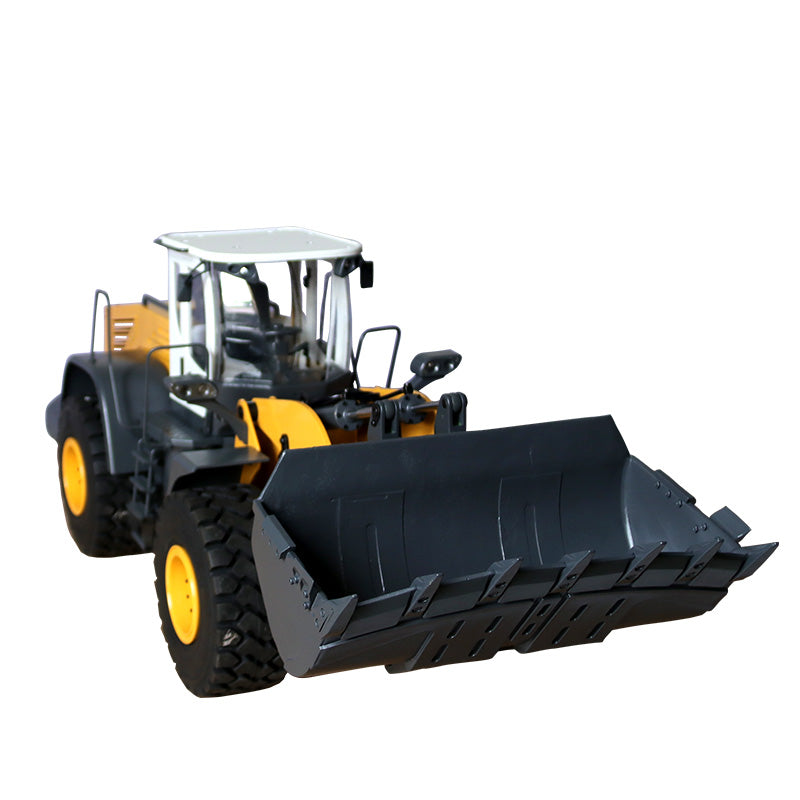

JDMODEL 1/14 engineering vehicle remote control hydraulic loader model JDM-88

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-88
JDM full metal 1:14 hydraulic wheel loader model. The model is moving fast, please pay attention to safety and operate correctly according to the instructions and operation video!

Scale: 1:14

Dimensions: Length 741 (bucket flat), width 249 (tire end face), height 276, unit MM vehicle weight: 21KG

Packaging size 885*380*380MM, packaging weight 26KG Theoretical rising force: 15KG (big arm lifting) Theoretical traction: 30KG Remote control: FS-i6S 2.4G Use 8 No. 5 batteries or 3S lithium batteries (please confirm the positive and negative poles when connecting)

Power supply voltage: 12V, use 3S lithium batteries (within the size of 140MM length, 45MM width and 40MM height) Startup sequence: 1 Please turn on the remote control first, 2 Connect the main power supply of the model 3 Wait for 5 seconds to hear the confirmation tone of the electric adjustment before operation

Sound system: Not included in the standard configuration, need to be purchased separately.

Hydraulic pump: flow 0.8L/MIN, rated pressure 2.5MPA ultimate pressure 5Mpa
Directional valve: micro 3-way directional valve with mid-position oil return plug. Lighting system: needs to be purchased separately (installation service is not provided) Note: When the boom is in the low position and the bucket is dropping materials, the boom cannot be lifted up, otherwise the bucket cylinder will be damaged.
Due to the large mass of the vehicle, it is necessary to avoid collision during transportation, otherwise the axle and bucket cylinder will be damaged. The hydraulic oil of the new vehicle should be added to 180 to 230 ml
