Model: JDM-188

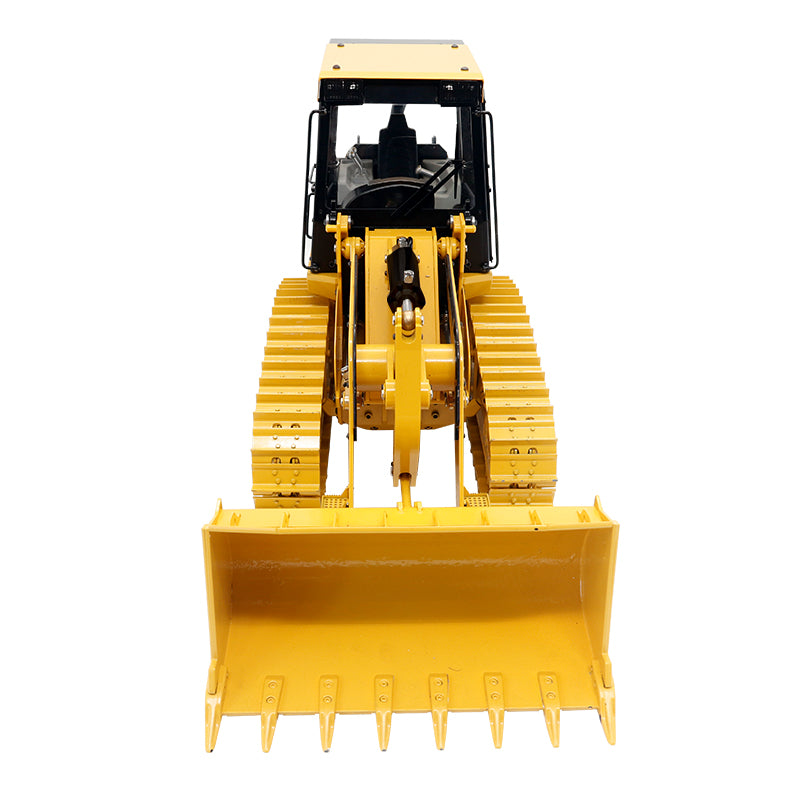

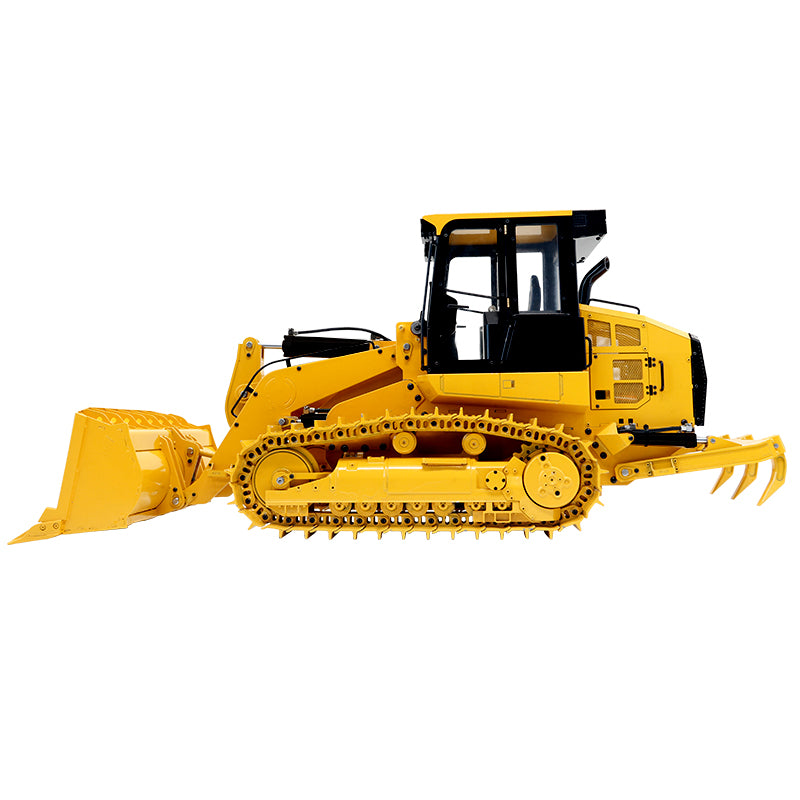

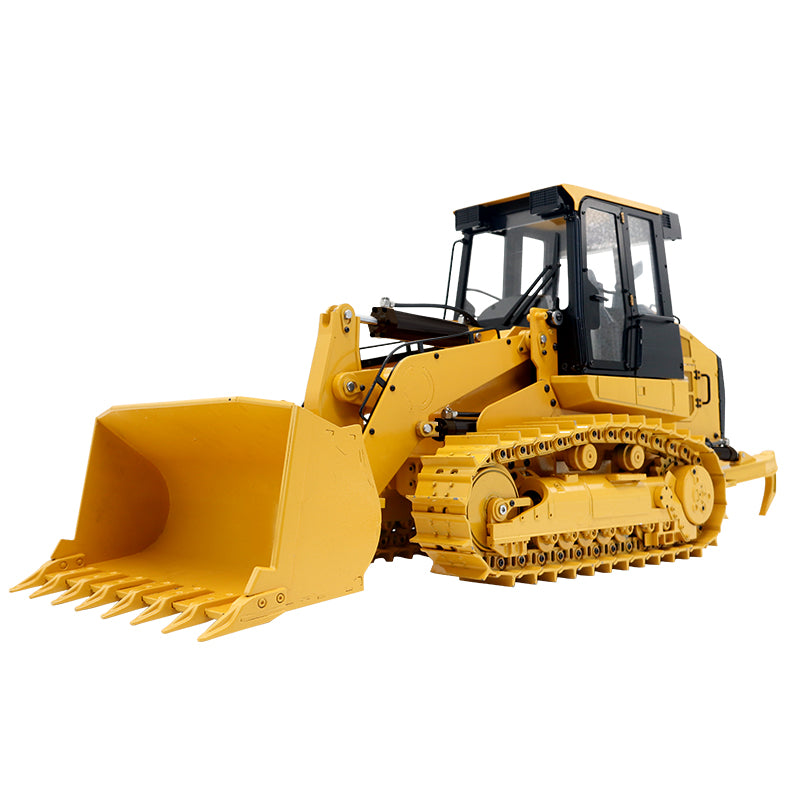

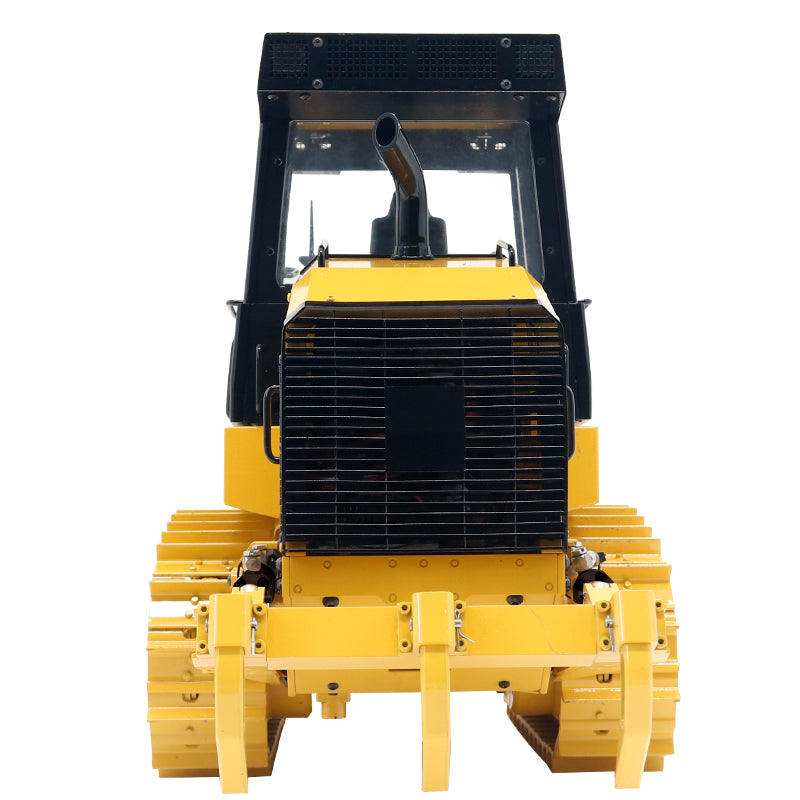

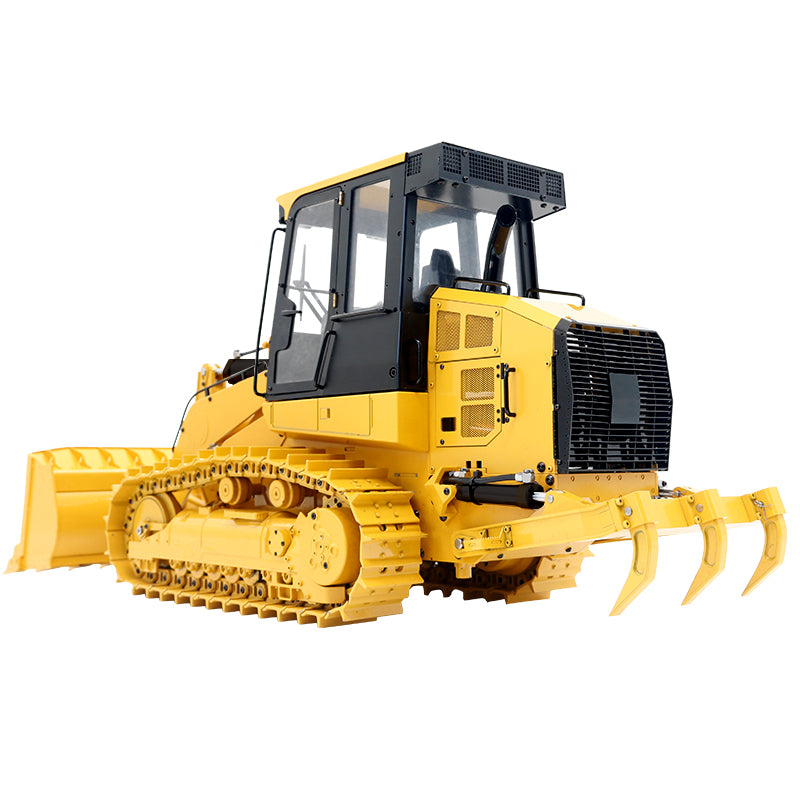

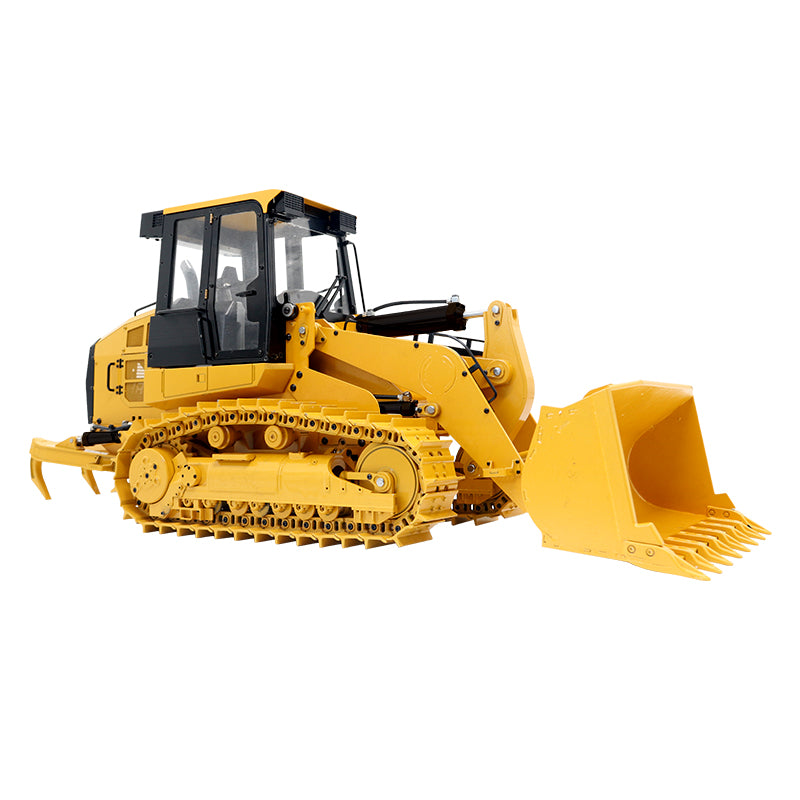

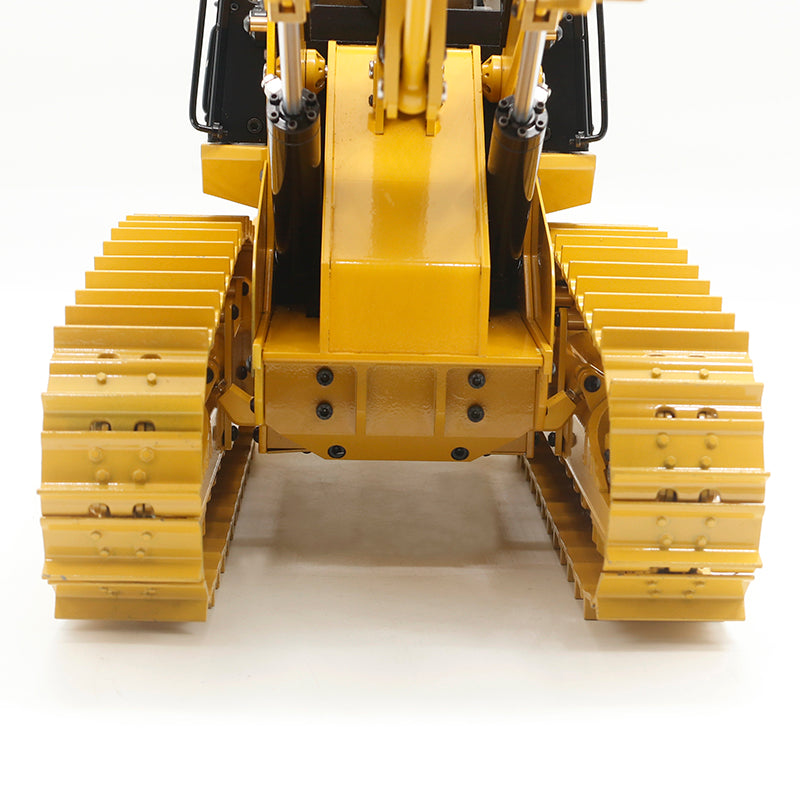

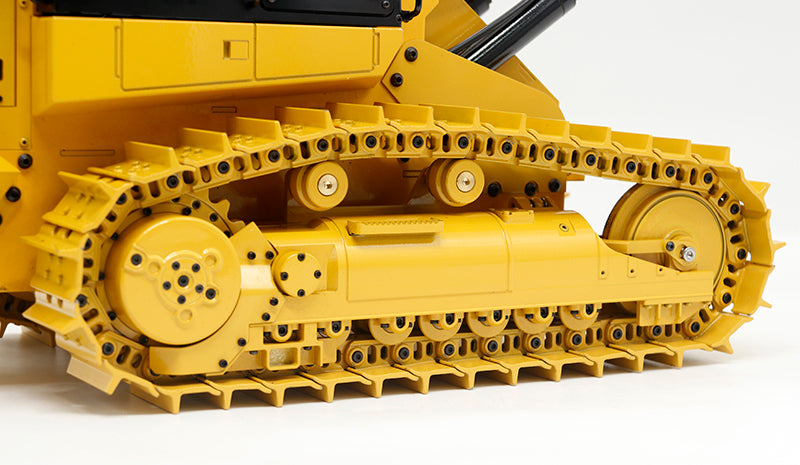

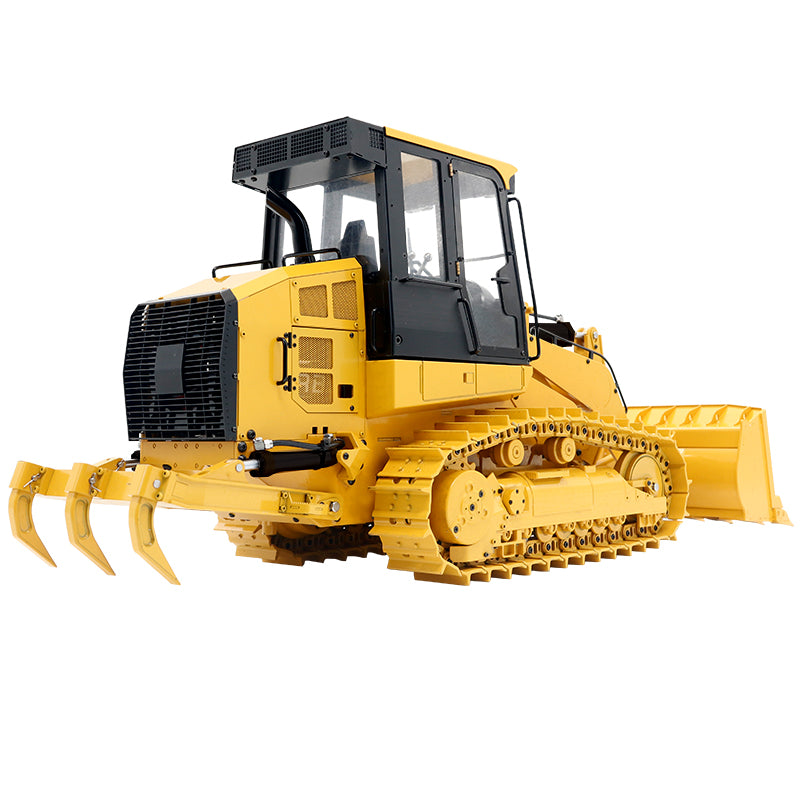

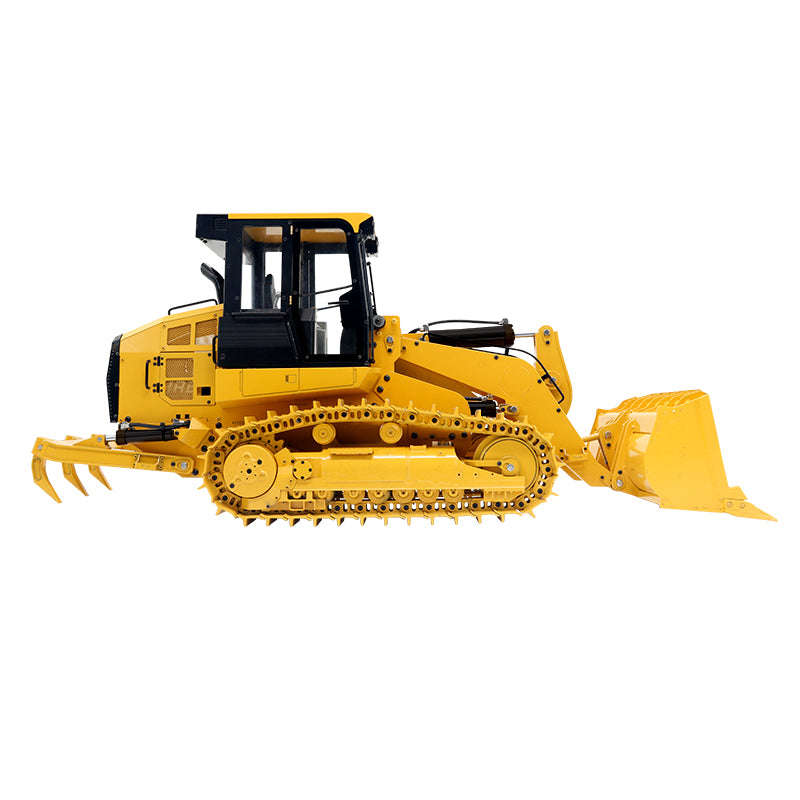

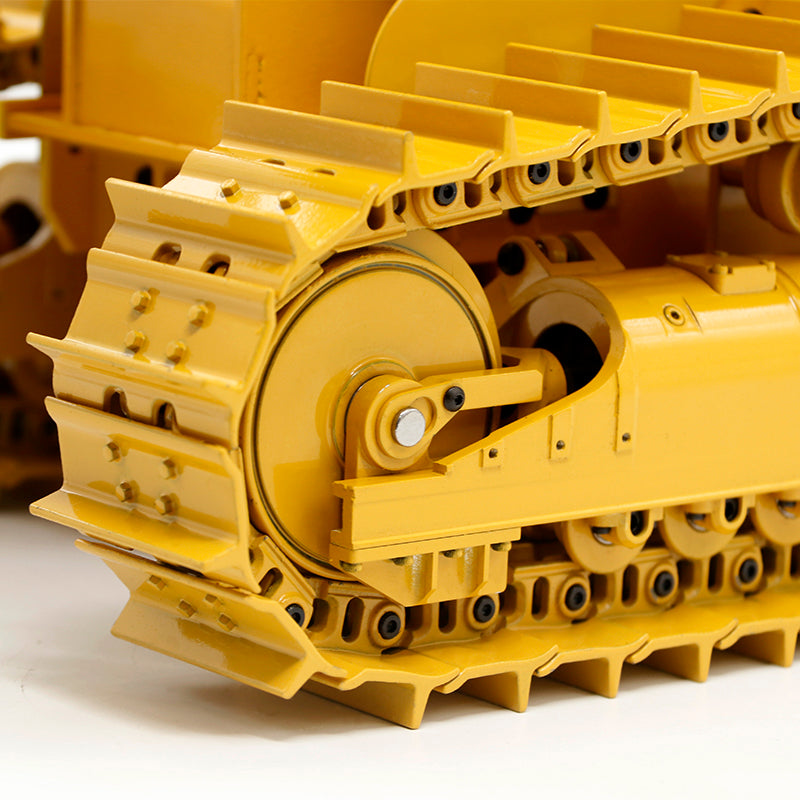

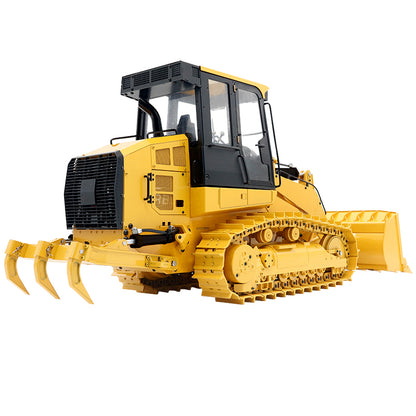

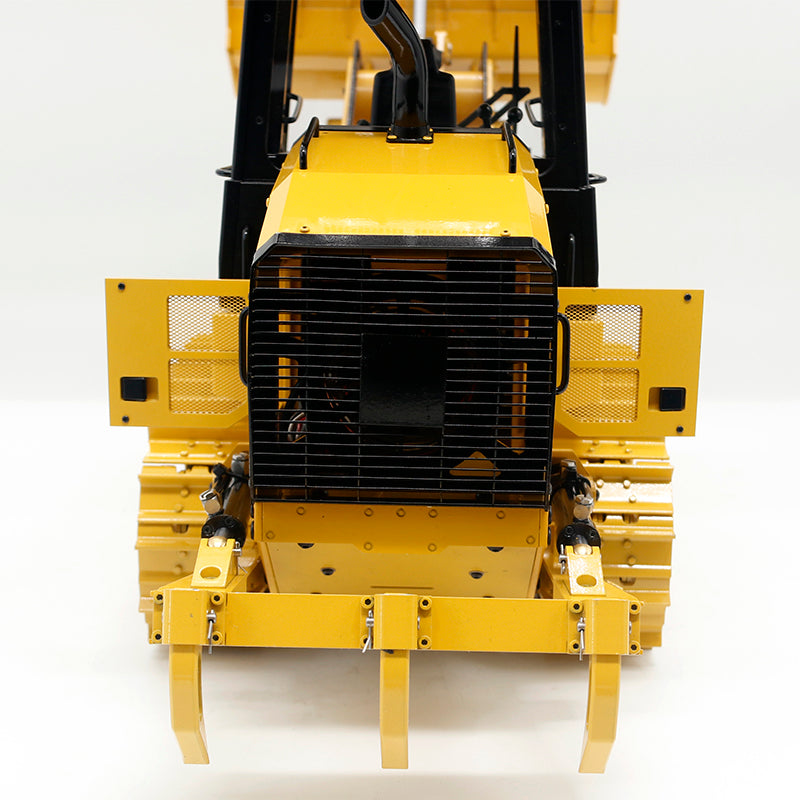

JDM-188 1:14 crawler loader hydraulic model
Scale: 1:14

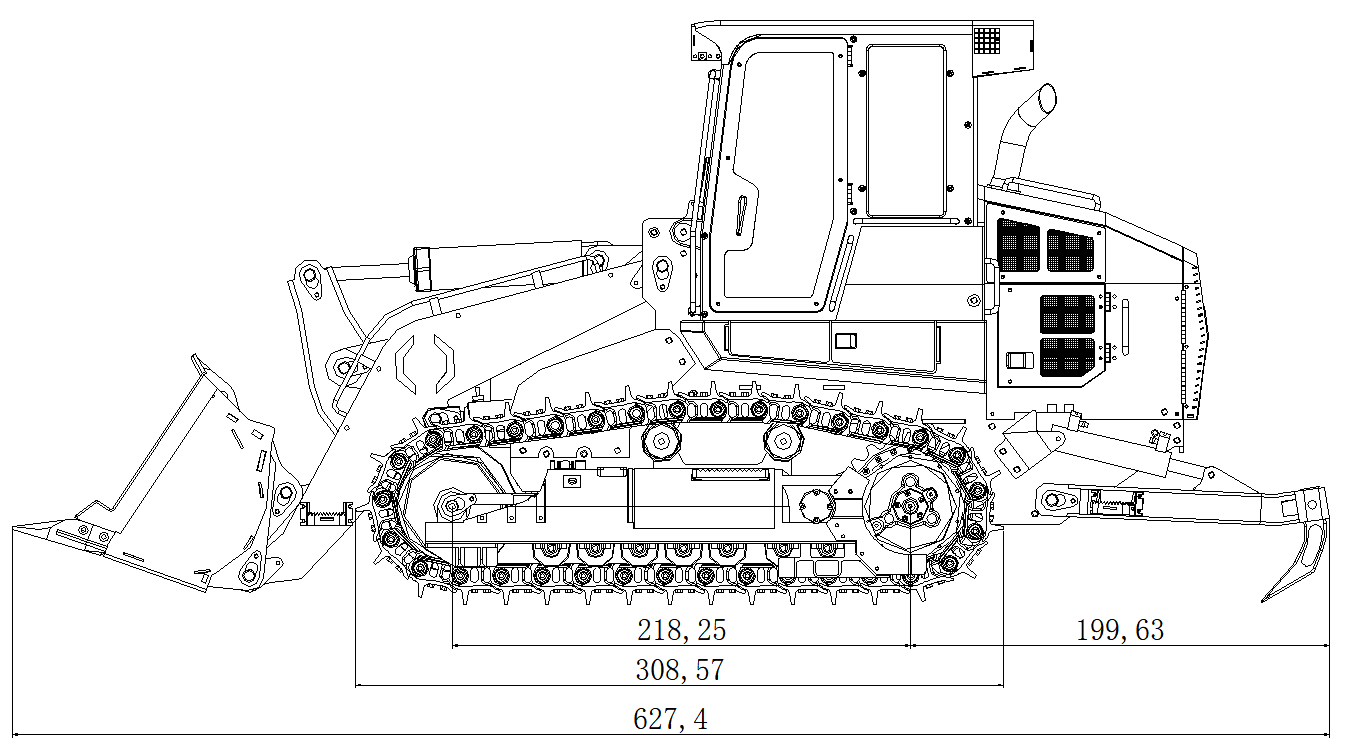

Dimensions: length 627 (bucket flat), width 220 (bucket end), crawler width 200, height 278 units MM
Vehicle weight: 15KG, packaged 18KG, package size 783*365*355MM
Theoretical rising force: 13KG (big arm lifting)
Remote control: Fushi FS-i6S uses 4 sections 5 No. battery (please confirm the positive and negative poles when connecting)
Power supply voltage: 3S lithium battery, 5200mAh, 11.1V, 25C or above
Battery compartment size: 135MM long, 30MM wide, 50MM high
Main vehicle battery installation: measure the voltage first (battery and power display need to be purchased separately), the voltage cannot be lower than 11.1V
Hydraulic pump: flow rate 0.8L/MIN, rated pressure 3MPA ultimate pressure 5Mpa
Directional valve: micro 3-way with mid-position return oil plug-type directional valve.
Lighting system: standard
Sound system: standard

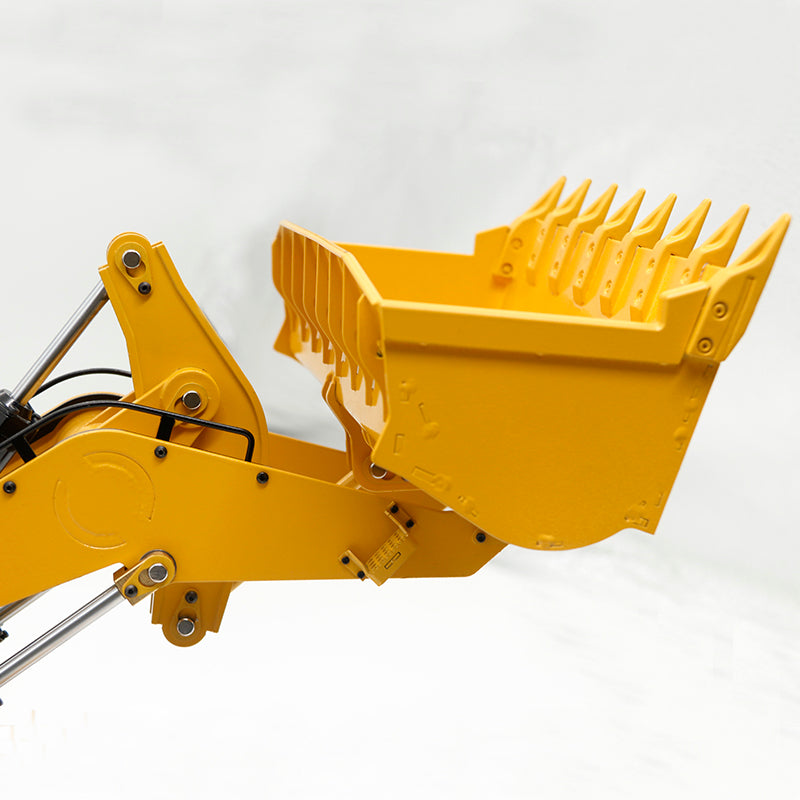

Note: When the boom is at the lowest bucket and the maximum angle, the boom cannot be lifted up, otherwise the bucket cylinder will be damaged or the pipe will burst.
Due to the large mass of the vehicle, collision should be avoided during transportation, otherwise the bucket cylinder will be damaged. The hydraulic oil of the new vehicle should be added to 80 ml
