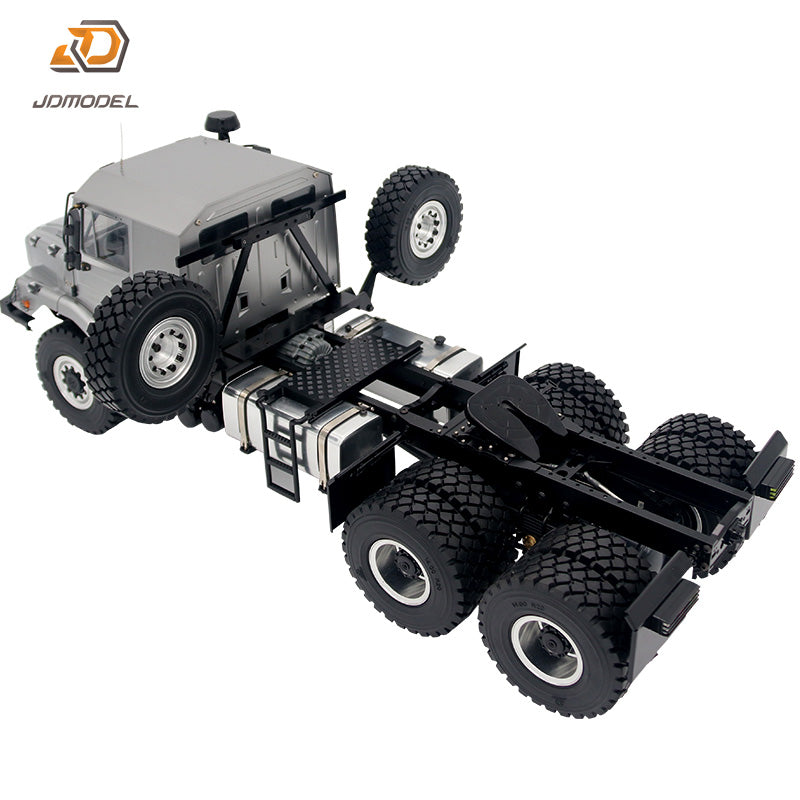

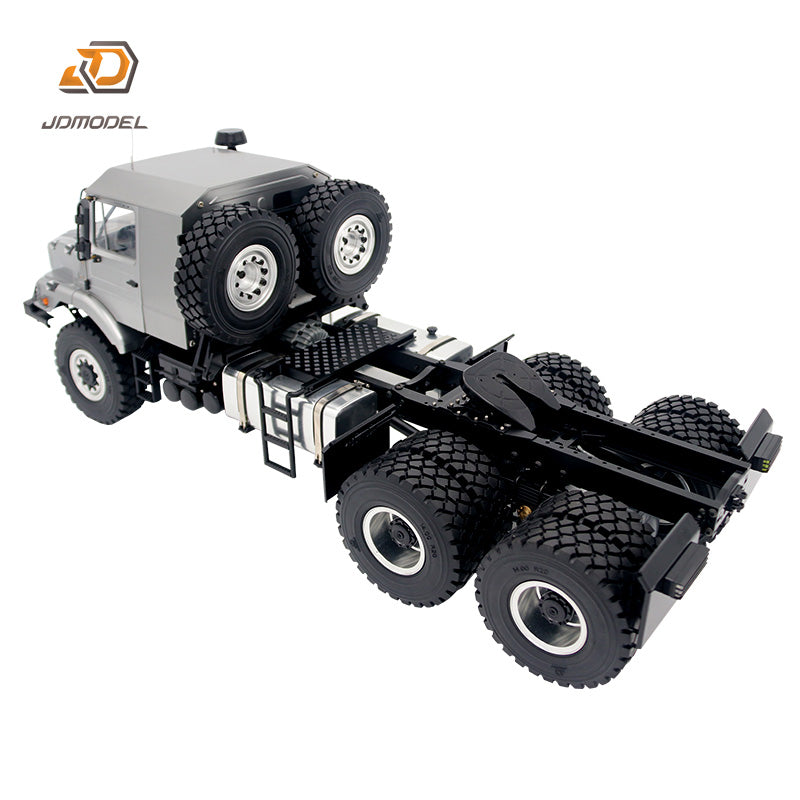

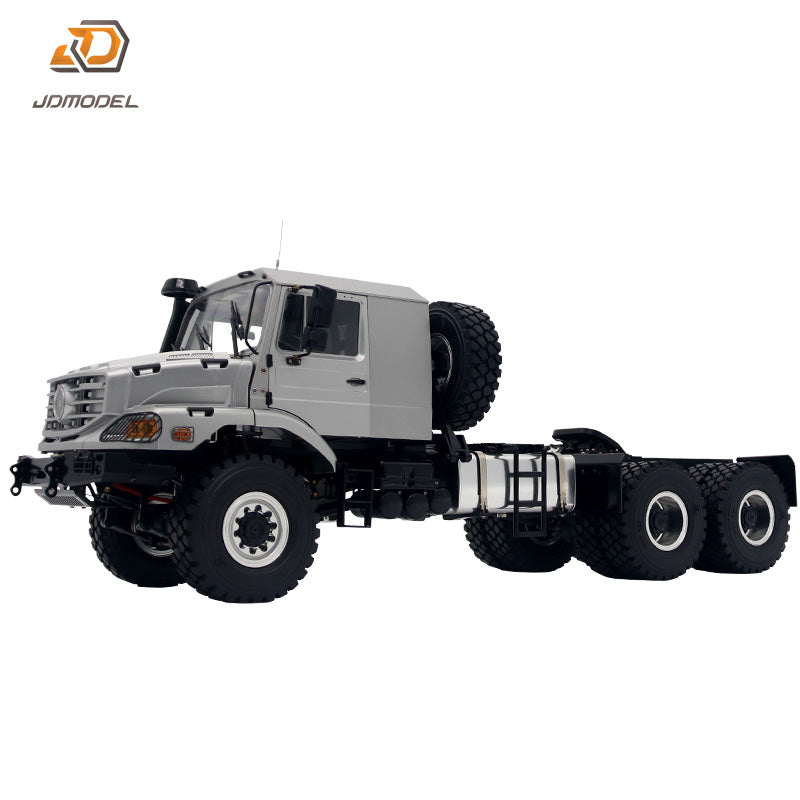

JDMOEL JDM-157 1/14 remote control off-road truck 6*6 tractor truck climbing trailer military truck heavy truck

Note to buyers:
I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-157

JDM-157 1/14 Remote Control Off-Road Truck 6*6 Truck Tractor Climbing Trailer Military Truck Heavy Duty

Please note: The ladder of this car is a simulation part and cannot be subjected to force. When you receive it, you need to avoid the ladder installation position when taking it out of the box

Scale: 1:14

Size: Length 674, width 227, height 242 (excluding antenna 273), unit MM

Packaging size 860*370*340MM, packaging weight 10.5kg

Wheelbase: total wheelbase 478, front axle to middle axle 363, middle axle to rear axle 115, unit MM

Front shock absorber travel: 20 MM

Gearbox: All-metal simulated planetary two-speed gearbox

Axle: Metal axle with locking differential function

Car shell: Plastic simulated hard shell, with interior, openable doors, openable hood, simulated headlights

Spare tire rack: retractable

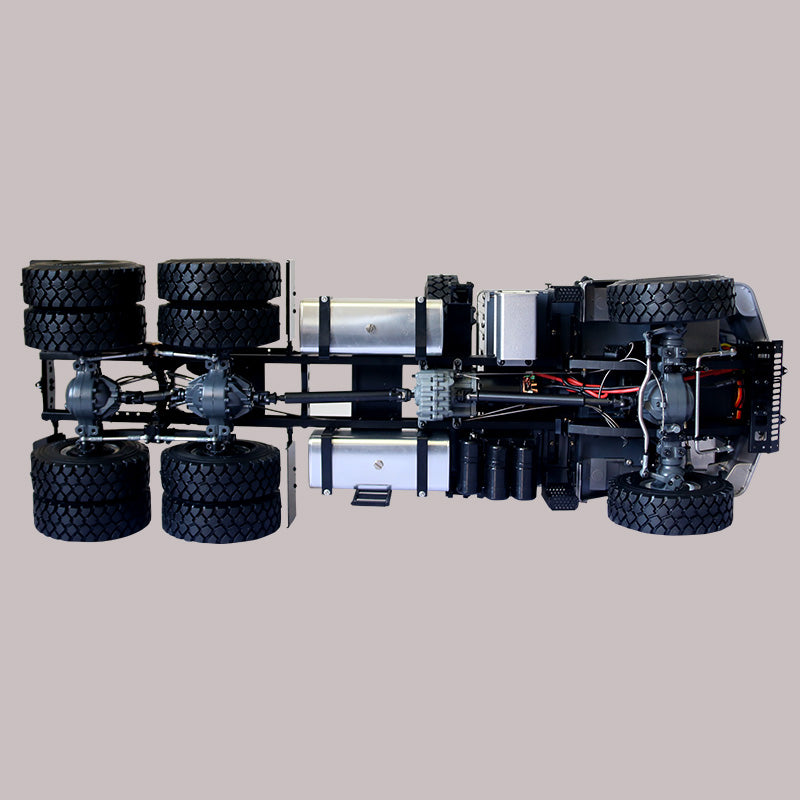

Chassis: Front suspension with anti-roll bar, all metal except battery box, simulated pedals, oil tank, exhaust tank, spare tire rack, metal beam, metal wheel hub, etc.

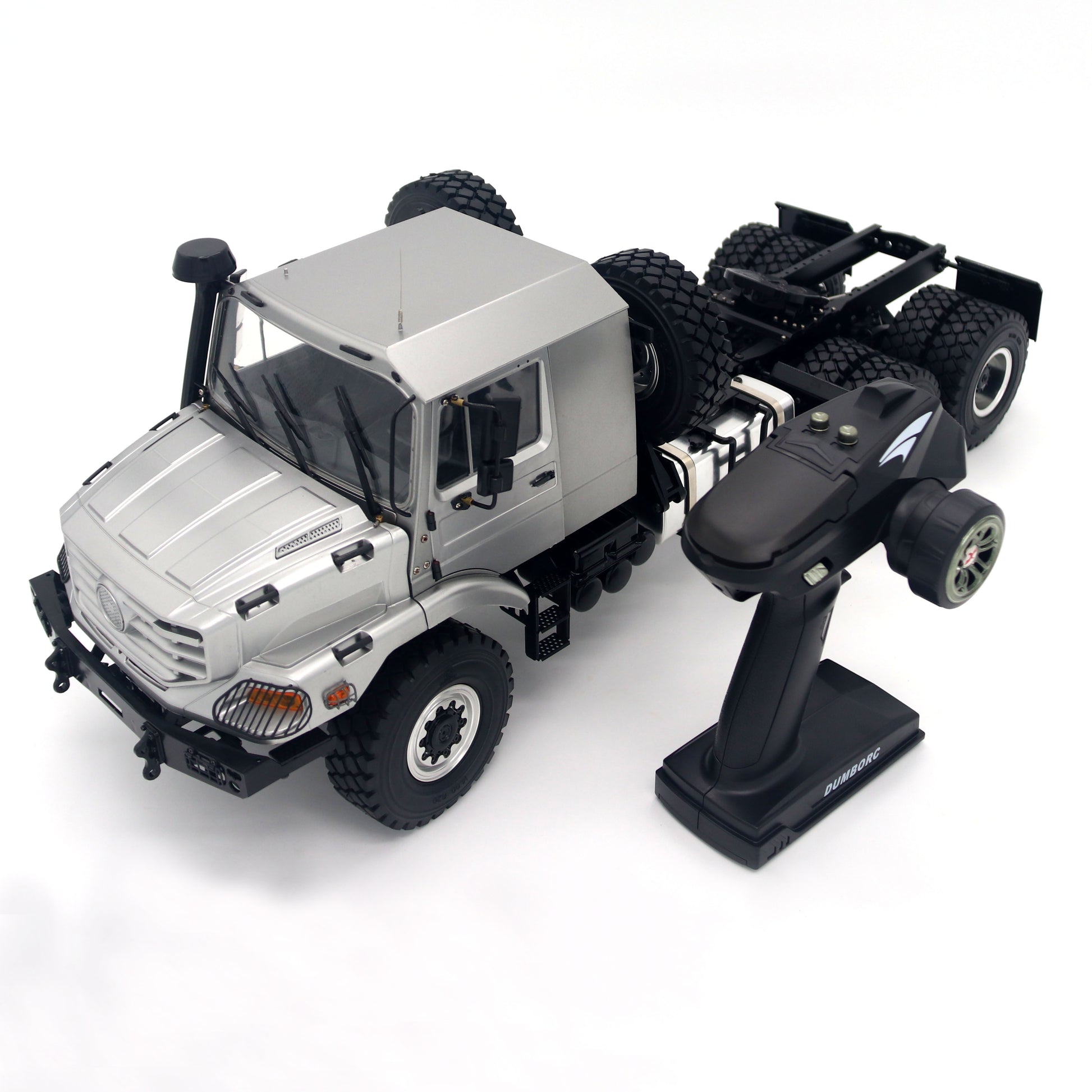

Remote control: DUMBO-X6

Electric speed controller: Haoying 1060

Servo: Weichuan Customized 0900

Motor: Snow Leopard 35T

Battery specifications: 3S, 5200mAh, 11.1V, 25C or above; Battery compartment size: 142*45*40MM (battery size can be within this range)

Weight: 6.8KG, plus remote control 7.1KG

Theoretical load: 10KG

Total load mass: 17KG

Precautions:

The remote control uses 6 No. 5 batteries, the main vehicle battery is 11.1V3S lithium battery or 12V battery, and the battery connector is XT60.

Operation steps:

First turn on the remote control (the switch or knob of the remote control should be in the default position), then connect the main vehicle power supply, and wait for the signal sound to confirm before operating (about 5S). If you operate in advance, it is likely that the ESC will enter the setting mode, causing the ESC to not work properly.

Main vehicle battery installation:

First measure the voltage (the battery and power display need to be purchased separately, 3S lithium battery within the size of 142MM length, 45MM width and 40MM height), the voltage cannot be lower than 11.1V
