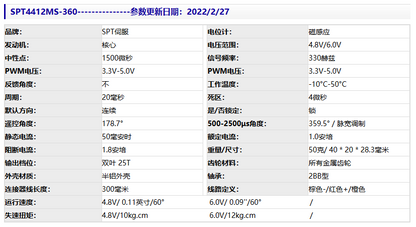

Angle range: remote control default 150 degrees, maximum 180 degrees; support control board 0.5-2.5MS maximum angle 300 degrees, support pulse width feedback;
Voltage and current: the servo supports voltage between 4.8V-6.0V, and the BEC is at least 1.5A or above;
Circuit functions: the servo has soft start, load blocking protection (10s continuous load blocking, current 2.0A or above), lock (remote control ignores, control board control needs to send a command even if the signal is disconnected, the servo has locking force; without lock, the same command needs to be sent continuously, the servo can be fixed in one position effectively, and the disconnection signal means the servo has no locking force)
Applicable range: large angle remote control car; single chip control board
